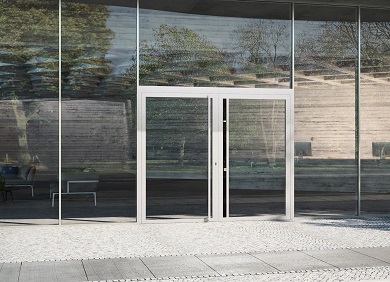

Schueco’s ADS HD door range offers unbeatable quality and choice

These stylish, superior quality doors can accommodate single, double and triple glazing up to 55 mm thick, giving them excellent thermal efficiency together with real flexibility in use.



Typical applications include education, health, leisure and retail buildings as well as offices and high-end residential developments.





The Schueco ADS HD range is available in single and double leaf configurations, inward or outward opening, and rebated frames with depths of 65, 70 or 75 mm. A wide choice of frame, leaf, mid-rail and bottom rail profiles mean that whatever the requirement, there is a Schueco ADS HD door system to suit.









In terms of reliability and durability, a Schueco ADS HD door has been tested up to EN 12400 Class 8 (1 million cycles), while possible security options include ratings from PAS 24 to higher level EN 1627 RC3.



The comprehensive choice of locking systems includes single-point, multi-point, self-locking and electronic locking, all of which are equipped with stainless steel faceplates classed in EN 1670 as having ‘high corrosion resistance’.



Barrel and surface-mounted hinges can support leaf weights up to 200 kg, while the concealed hinge option is an elegant alternative for weights up to 150 kg. The range encompasses maximum leaf widths up to 1400 mm wide and heights up to 3000 mm.



For public and private sector applications, there is an option of either single or double emergency exit doors to EN 179 and EN 1125 operated by panic- or touch-bars, while decorative solid or glazed panels can be fitted to allow a Schueco ADS HD door to look equally at home in a sophisticated residential situation.



For further information on all the products in the Schueco ADS HD door range, please email mkinfobox@schueco.com





Schueco – System solutions for windows, doors and façades





Together with its worldwide network of partners, architects, specifiers and investors, Schueco creates sustainable building envelopes that focus on people and their needs in harmony with nature and technology. Windows, doors and façade solutions from Schueco meet the highest requirements in terms of design, comfort and security, whilst simultaneously reducing CO2 emissions through energy efficiency, thereby conserving natural resources. The company delivers tailored Metal and PVC-U products for newbuilds and renovations, designed to meet individual user needs in all climate zones. Everyone involved is supported with a comprehensive range of services at every stage of the construction process. With 4,800 employees and 12,000 partner companies, Schueco is active in more than 80 countries and achieved a turnover of 1.425 billion euros in 2014. For more information, visit www.schueco.co.uk
