Luoyang North Glass Technology Co., Ltd.,

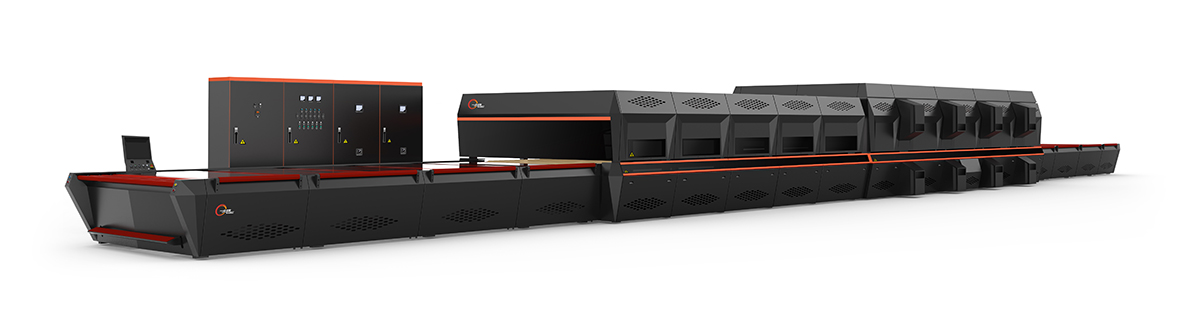

Top Series (T-Series)

T-Series: Standardly furnished with “Finer Heating Control Partition” and “Intelligent Heating Control System based on glass exit-chamber temperature”, suitable to produce highest quality tempered glass with big production quantity and high efficiency and stability. It is the ideal choice of domestic & foreign large-scale glass processors for industrial upgrading.

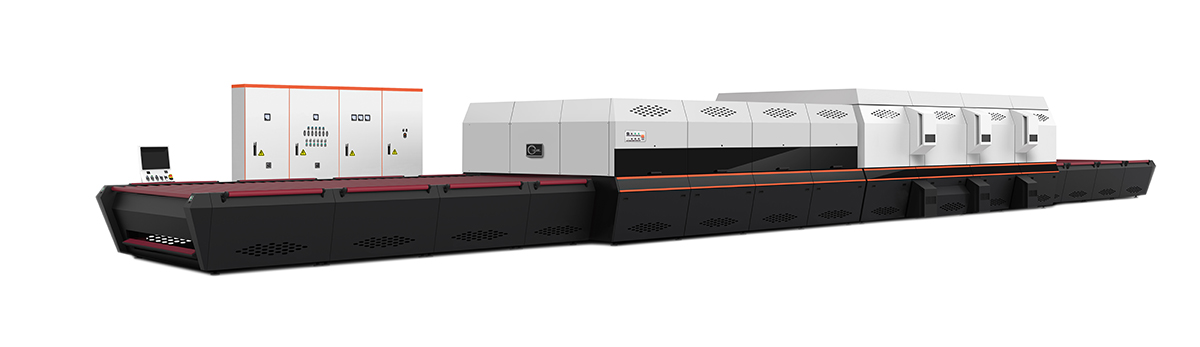

The 3rd Generation of Advanced Series ( A-Series )

A-Series: Standardly furnished with “Intelligent Heating Control Module” and “Super Flat & Spotless technology”, optionally with “5G Gapless Forced Convection technology”, A-series tempering furnace can efficiently & stably temper almost all kinds of glass with minor optical distortion and slight iridescence. It is the most popular choice of glass tempering furnaces for all different scale glass processors.

The New Generation of Basic Series ( B-Series )

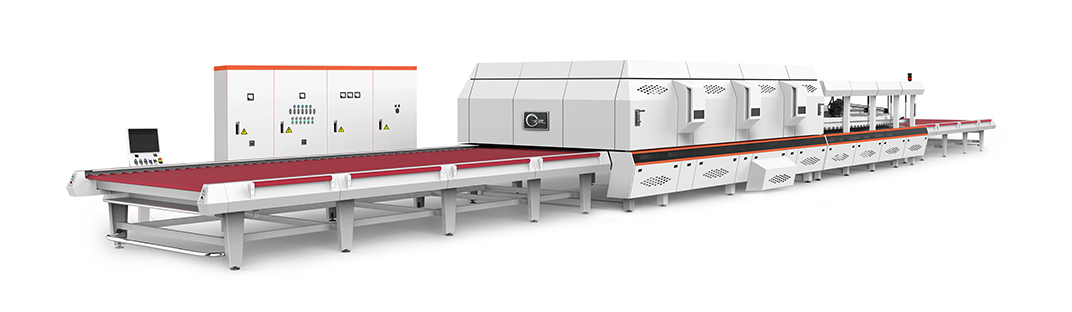

B-Series: Completely upgraded and reborn from NorthGlass’s classic B-series furnace, furnished with recently developed new “Temperature Control System” and “Basic Gapless Forced Convection System“, significantly improve the production efficiency and glass quality meanwhile reduce the energy consumption. It is an affordable choice for small & medium scale glass processors.

Technical Feature:

The identical 795mm design of vacuum compartments enables users to exchange the location of the pump,gas separation and cathode compartments freely, thus to improve process flexibility.

New design of the gas separation device avoids gas drifting between cathode compartments and achieves better gas separation effect.

The extruded aluminum supportingtube makes the magnet andits yoke isolate from the cooling water toavoid the change of the magnetic field due to soaking in the water for a long time.

Equipped with 5-9 manifoldauxiliary process gas system and each could be different as the process requirement.

High precision conveying control can be ensured by servo motors.

Reducingthe volume of enter and exit chambers toimprove efficiency and cutdown cost.

An integrated cathode lid achievesa perfect combination by putting gas manifold, controllers, connections for power supply and various media in a “box” to make the process configuration more flexible.

Every cathode is equipped with an independent control system.

The one-piece lid design can makethe mechanical and hydraulic lifting easily, thus to achieve betterautomatic control.

By using of advanced maglev turbo-molecular pumps and screw line pumps to preventpollution from the backflow oil and makes it more reliable and efficient.

Technical Data

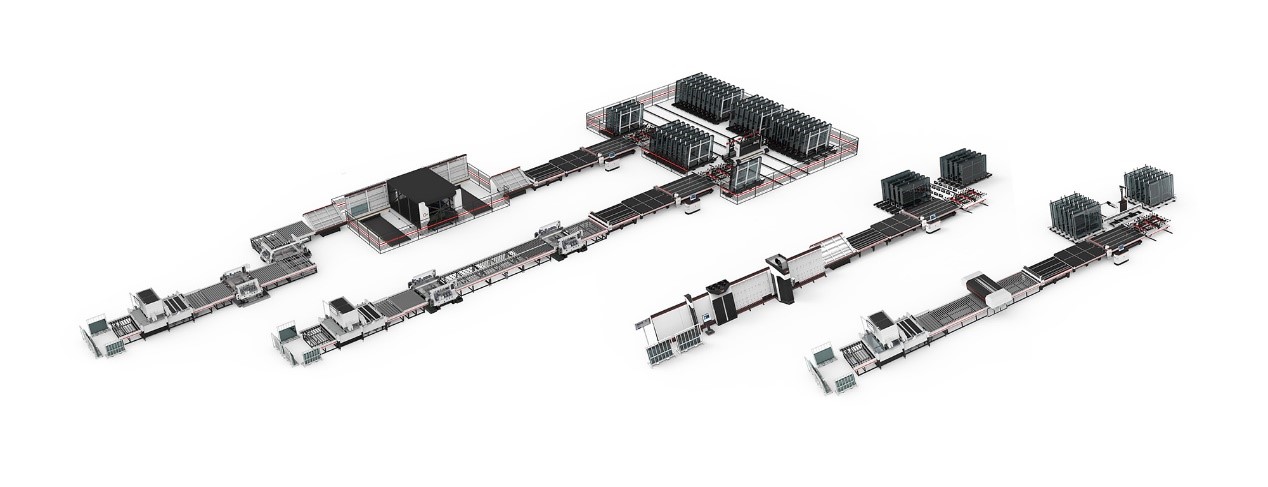

Currently, more than 10 NorthGlass deep-processing automation lines have been in the tense period of production, installation and commissioning for customers. In the future, NorthGlass will make full use of both her technology and resource advantages to face with new renovation challenges together with glass processors in the industry.

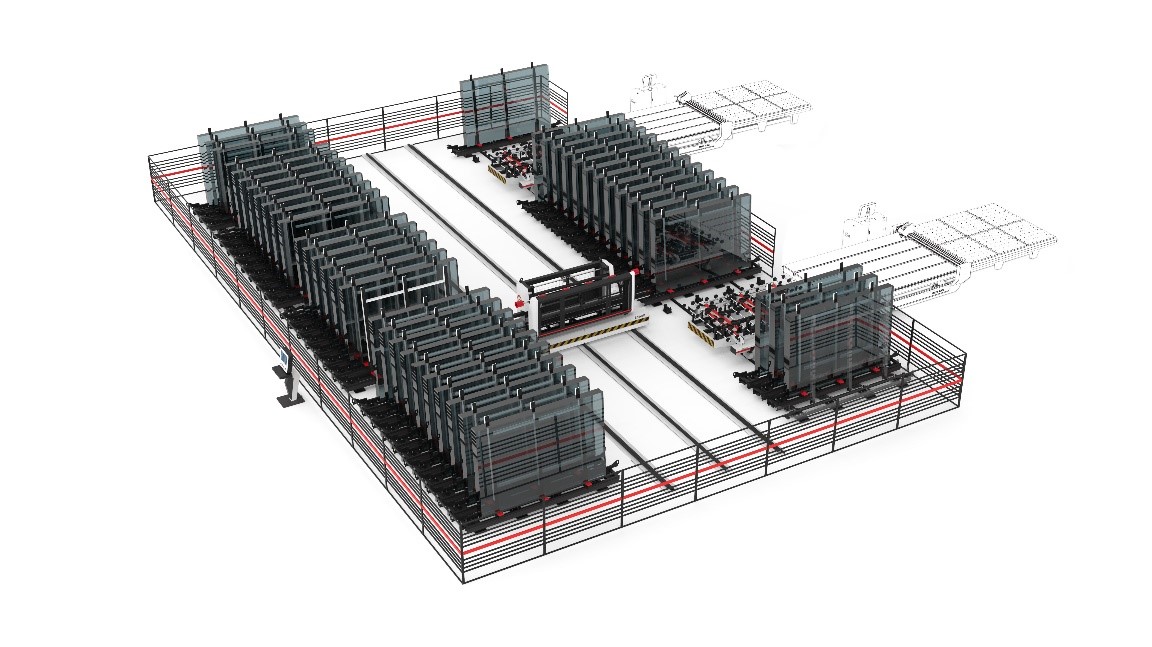

glas.RB multi-function Glass Storage System

Functions Introduction: According to the stocks in the warehouse, dispatching the raw glass at a time. Then loading one piece of glass sheet at a time automatically according to the optimized cutting task.

Application Range: either supports mass production by packages, or bulk production by pieces, so the time, manpower and material cost happened during frequency changing raw glass can be saved. In general, it is used in one or two cutting lines.

Glass Size : 2850 × 4200mm 3300 × 6000mm 3300 × 8000mm

Walking Speed: 40m/min

Pulling Speed: 40m/min

Racks Depth: 280mm

Maximum Loading Weight: 3 Tons

Ground Requirement: 5kg/ cm²

glas.RG Gantry Type Glass Storage System

Functions Introduction: It is a more flexible glass storage system, can share the working library and the raw glass library together, the system will dispatch the glass according to the stocks uniformly, then load one piece of glass sheet at a time automatically to the cutting machine according to the optimized cutting task.

Application Range: It has the features of mix cutting, so the time, manpower and material cost can be saved during frequency changing of raw glass in the production. In general, it is used in one or two cutting lines.

Maximum Glass size: Two pieces 2440 × 3660mm, One piece 3300 × 6000mm or one piece 3300 × 8000mm.

Minimum glass: 2000 × 2000mm

Loading Weight: 2 Tons

Walking speed: 60m / min

Grounding requirements: 5kg / cm²

glas.RD Drawer Type Moving Racks Glass Storage System

Functions Introduction: According to the stocks in the warehouse, dispatching the raw glass at a time. Then loading one piece of glass sheet at a time automatically according to the optimized cutting task.

Application Range: It has the features of mix cutting many kinds of raw glass, so the time, manpower and material cost happened during frequency changing raw glass can be saved. In general, it is used in one or two cutting lines.

Glass size : 2850 × 4200mm 3300 × 6000mm

Conveying Time: 20S

Racks Depth: 280mm

Maximum Loading Weight: 3 Tons

Grounding Requirement: 5kg/ cm²

glas.RS Shuttle Car Glass Storage System

Functions Introduction: According to the stocks in the warehouse, dispatching the raw glass at a time. If there are 2-6 Cutting Lines, the raw glass will be dispatched by packages. It can also optimize the dispatch task of several cutting lines work at a time.

Application Range: Applying for large scale batch jobs, avoiding breaking off during cutting caused by raw glass dispatch, improving glass using ratio as many cutting lines working together.

Driven Mode: double servo motor +rack & gear

Glass Size : 2850 × 4200mm 3300 × 6000mm 3300 × 8000mm

Pulling Speed: 40m/min

Walking Speed: 60m/min

Racks Depth: 280mm or 350mm

Maximum Loading Weight: 3 Tons or 5 Tons

Ground Requirement: 5kg/ cm²

l Drawer-style Glass Storage System

Introduction: Applying for multi-varieties and small batch glass access.

Function A: Solving the access problem of the residual glasses in processing and it is the preferred storage device for glass processing

Function B: Applying for single glass cutting access.

Glass size: 3660mm × 2140mm

Rack Depth: 220mm

Maximum Loading Weight: 3Tons

Ground Requirement: 5 Tons/ m²

glas. Organ- style Glass Storage System

Introduction: Applying for multi-varieties and small batch glass access by storing maximum raw glass in the effective area.

Function A: Automatically applying for gantry glass storage.

Function B: Opening and closing independently and semi-automatically

Glass size: 6100mm × 3210mm 2440 × 1830mm

Walking speed: 0.1m/s

Rack Depth: 280mm/500mm

Maximum Loading Weight: 3 Tons or 6 Tons

Ground Requirement: 10 Tons/ m²

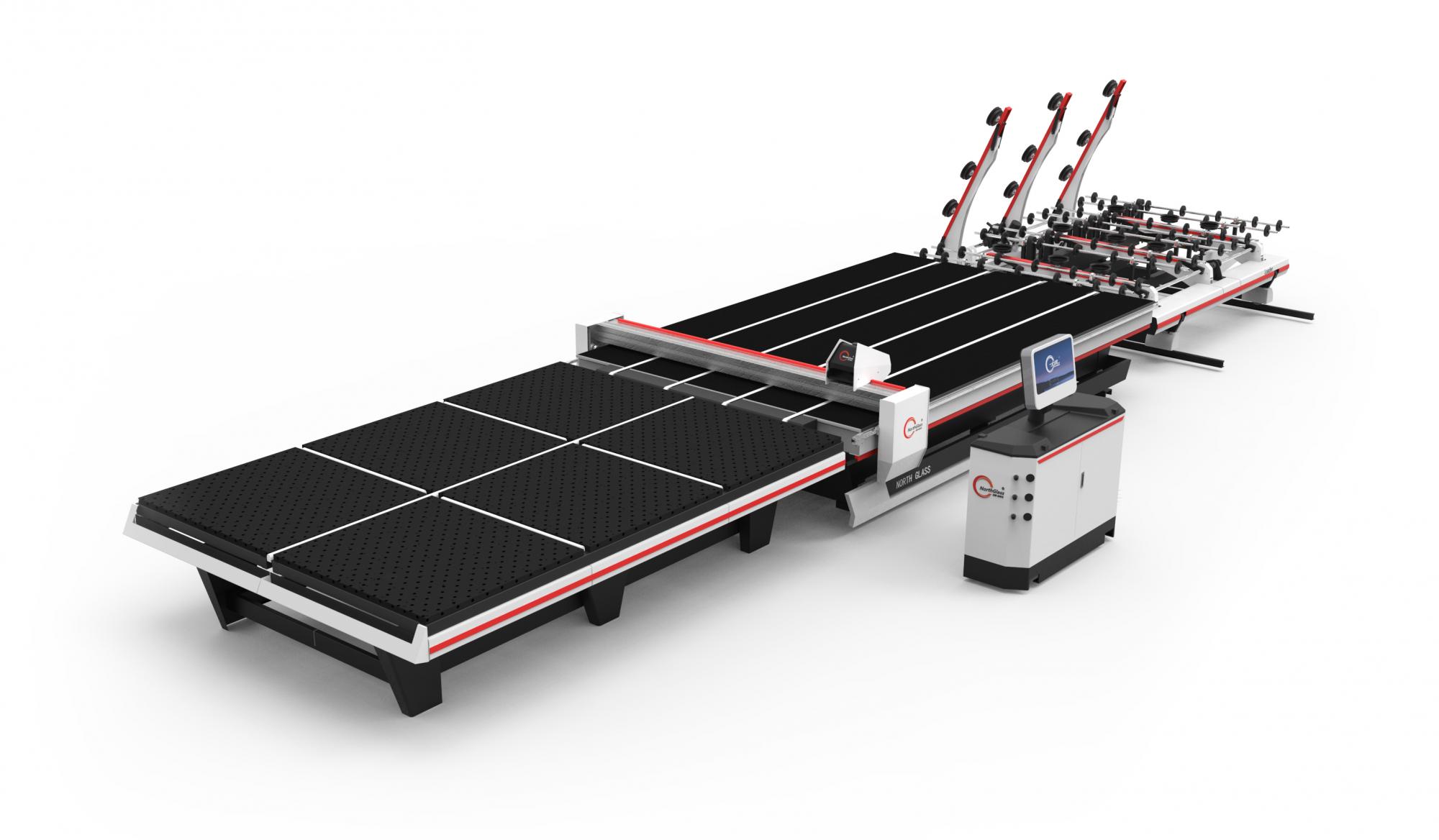

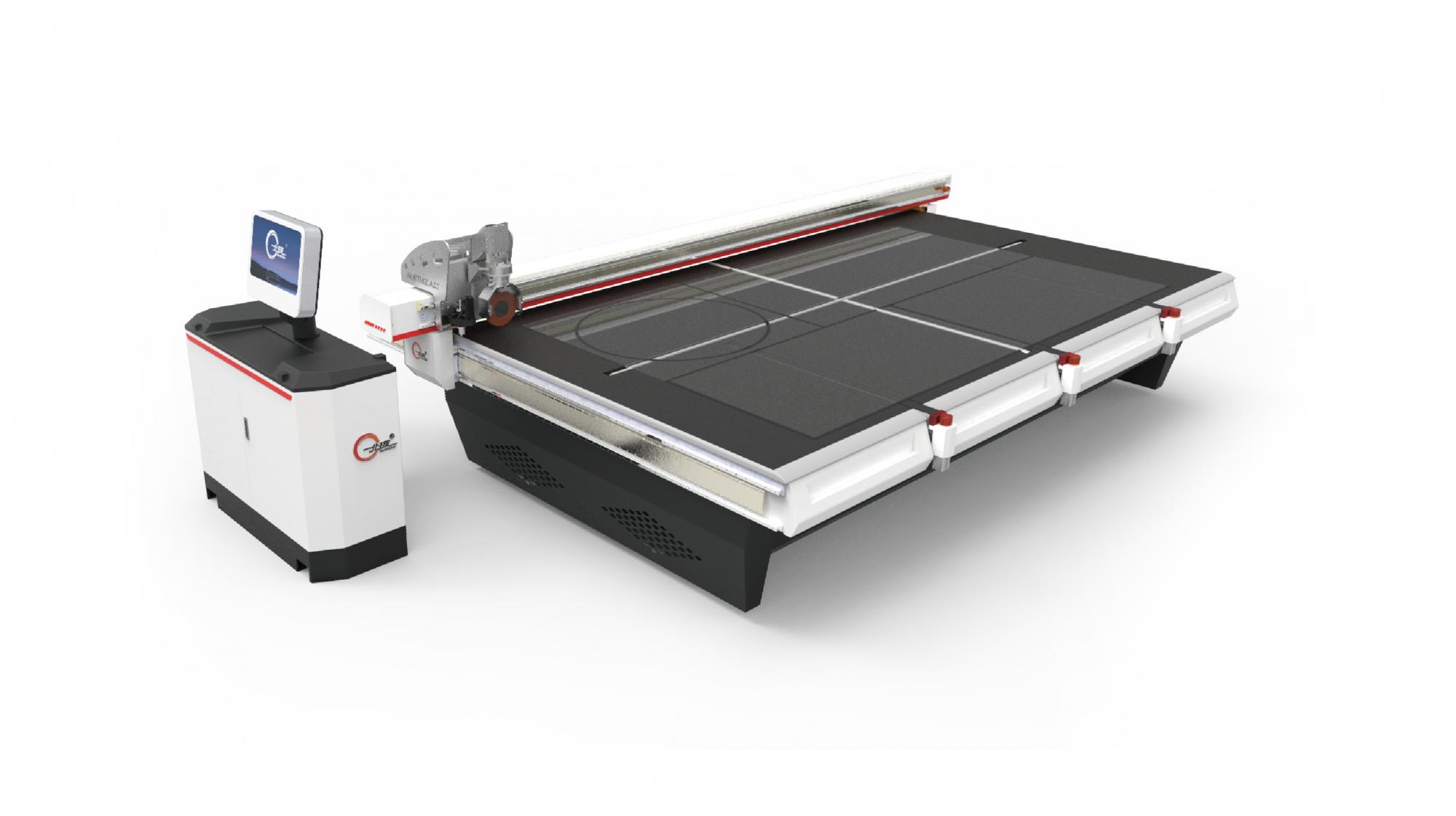

glas.C Pro Cutting Machine

Drive mode：Linear motor

Cutting speed：200m/min

Cutting precision：linear ± 0.15-0.1mm

Cutting thickness：2-12mm

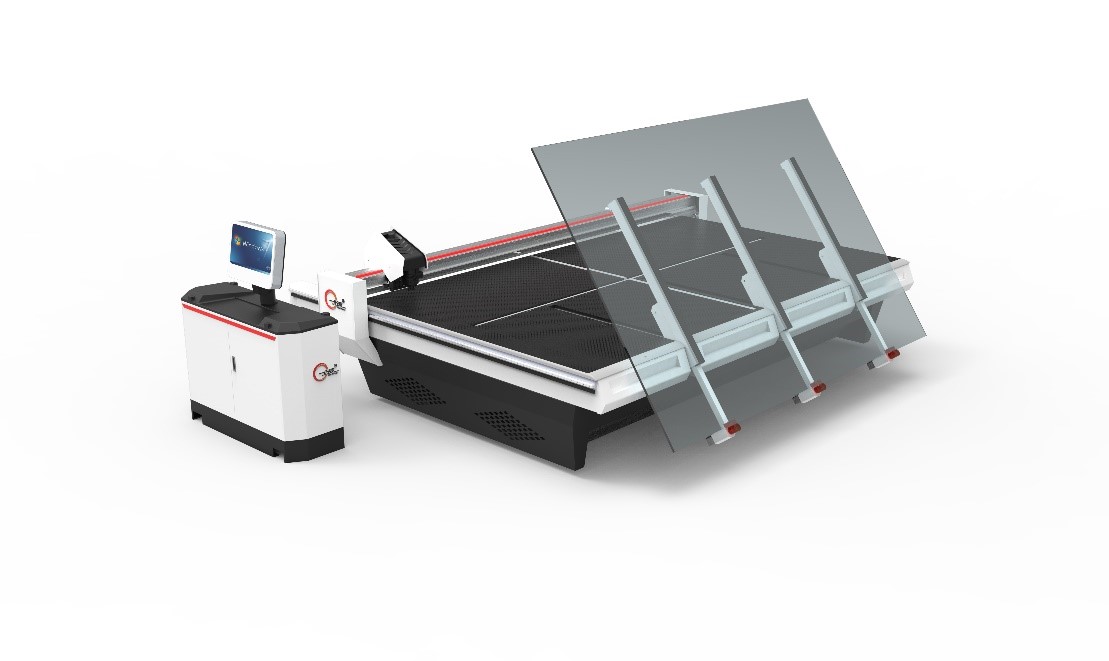

glas.C Cutting machine

Option of single machines and systems:

Loading station: loading glasses according to the working station, suitable for economic mass production, single station or multi-station is optional.

Loading machine: loading glass from left side, right side or multi-stations, manual loading or automatic loading is optional.

Cutting machine: achieving a maximum precision dynamic XYZ cutting and integrating loading &unloading.

Break-out table: conveying glass by air-cushion (or belt) and integrating assistant or automatic unloading.

Automatic breaking machine: breaking glass at X/Y/Z direction automatically and integrating steering system.

Precision assurance: servo motor+ acceleration/deceleration motor+ acceleration/deceleration curve control + reasonable reduction ratio selection.

Reliability assurance: heavy duty frame + light cutting bridge + independent beam + double-motor driving.

Max cutting size: 2850 mm × 4200mm, 3300 mm × 6000mm

Min cutting size: 1000 mm × 1500mm

Cutting thickness：3-25mm

Cutting precision：linear ± 0.25mm/2000mm

diagonal ＜0.25mm

shape outline＜0.20mm

Convey speed：40m/min

Cutting speed：max 180m/min

Working beat：40-65s

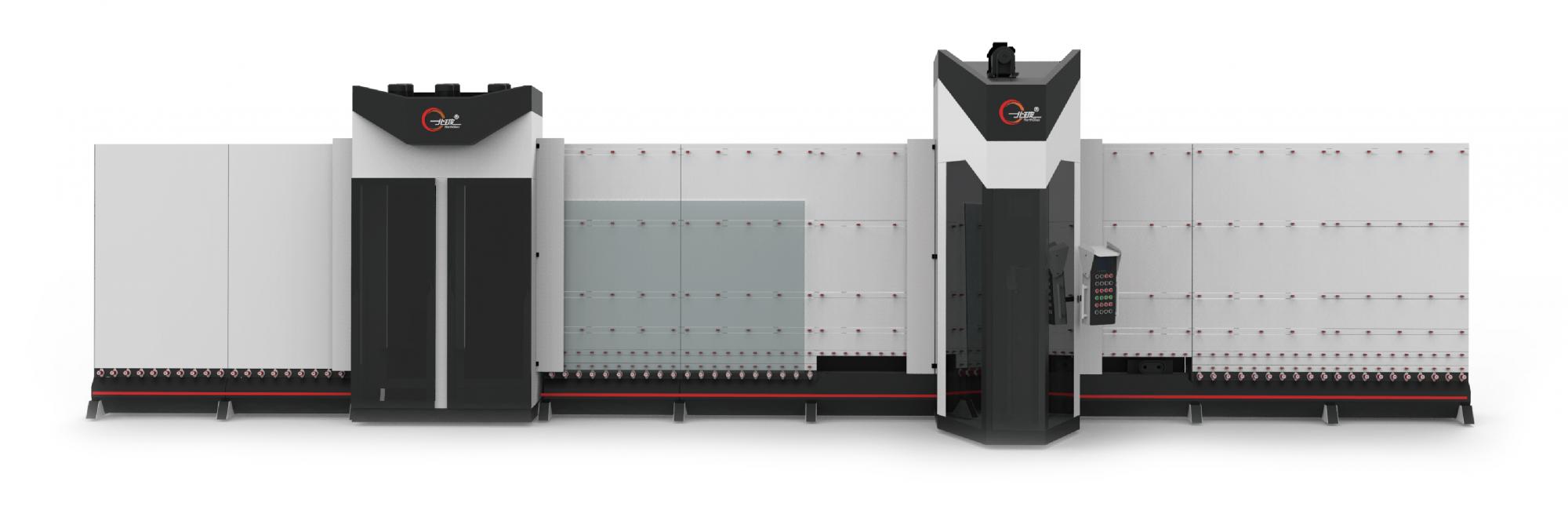

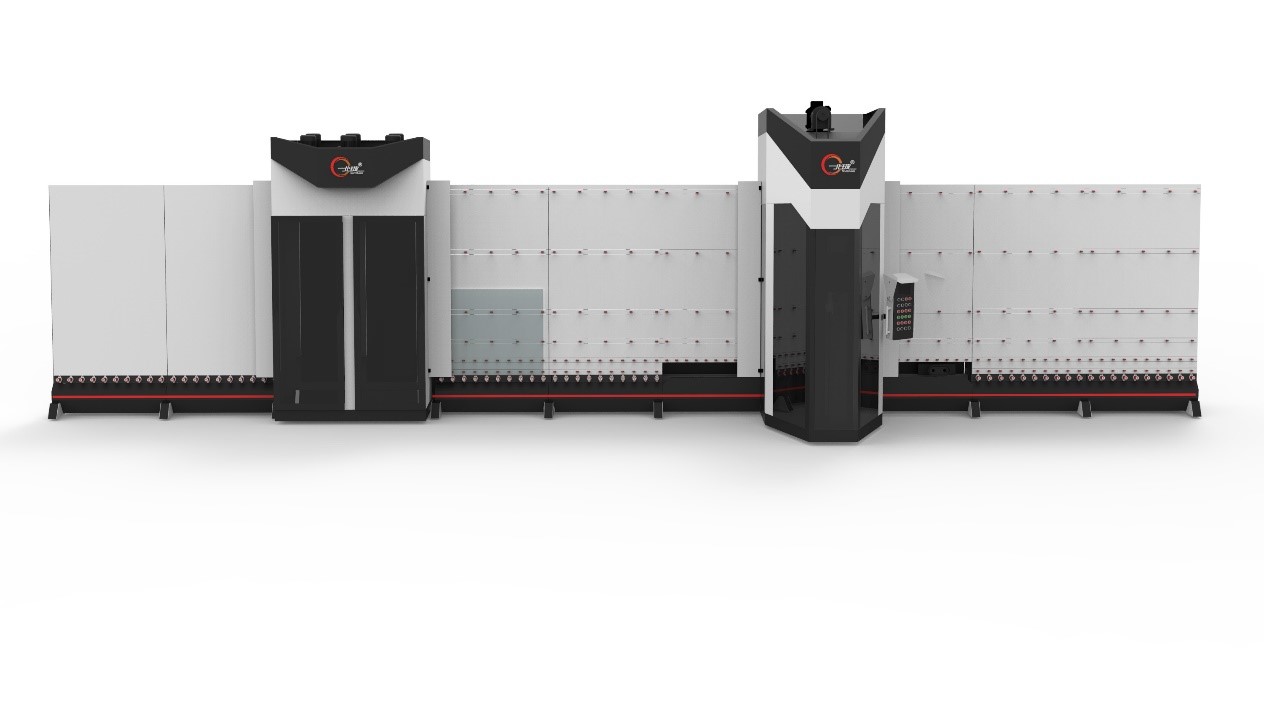

glas.WV Vertical washer

Max.Glass size: 2500×3500mm

2500×5000mm

Min.Glass size: 350×450mm

Glass thickness: 3～15mm

Washing speed : 0～8m/min

Brush quantity:2 or 3 pairs

Air Knife quantity: 1 pair

glas.EV vertical

Max.Glass size: 2500×3500mm

2500×5000mm

Min.Glass size: 350×450mm

Glass thickness: 4～8mm

Grinding speed: 0-25m/min

Installation power: 15KW

Grinding head quantity: 6 No.

Air pressure: 0.6 Mpa

 Laminated Glass



Laminated Glass consists of multiple layers of glass laminated together with highly tear resistant interlayers. The choice of

interlayer depends on the application. Stiff interlayers are generally preferred for structural glass applications while softer interlayers

demonstrate advantages for noise reduction or in the event of bomb blast.

NorthGlass Laminated Glass can be laminated using float glass, heat strengthened or fully toughened glass. With a maximum

dimension of 3.6 m x 18.0 m or 4.0 m x 8.0 m, NorthGlass provides the largest laminated glass units in the world.

Maximum Size: 3600mm×18000mm

Minimum Size: 300mm×300mm

The representative cases of NorthGlass:

Abu Dhabi International Airport

Beijing Phoenix Center

Manchester City Hall

Bloomberg Building

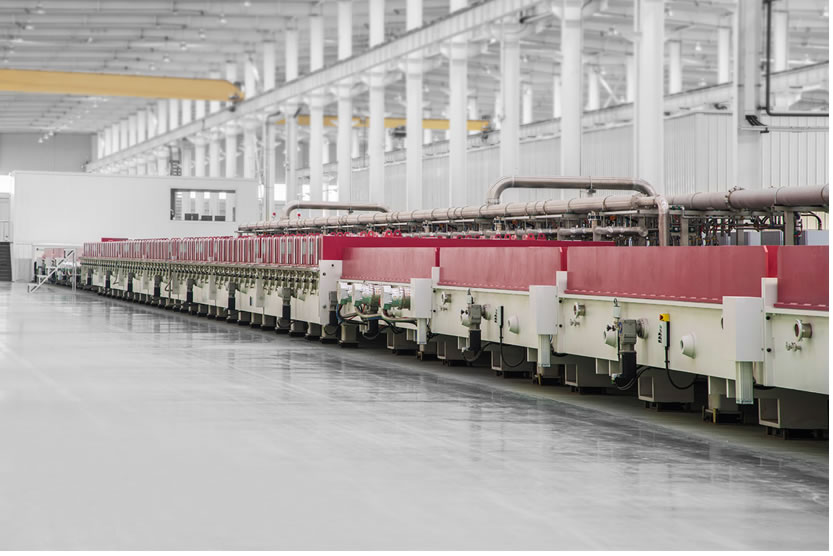

Coated Glass

High performance coatings can not only improve the energy performance of the glass facade but provide a unique appearance to the building. With our in house coating line

NorthGlass is able to provide clients with custom made coatings. With a total length of 260 m, NorthGlass operates the largest coating machine in the world and can make glass units with dimensions up to 3.3 m x 18.0 m.

Maximum Size: 3300mm×18000mm

Minimum Size: 300mm×300mm

Thickness: 3mm-19mm

Curved Glass

Curved Glass is an essential element of modern, free form architecture. To meet the current market requirements NorthGlass

Curved Glass is produced by using three different production processes. This enables NorthGlass to produce curved glass of the

highest quality and best safety characteristics for each individual project.

Depending on the glass build up, coatings and bending geometry, dimensions of 3.6 m x 18.0 m are achievable.

FT or HS : cylindrical curved, heat strengthened glass.

AN : annealed, gravity bent glass.

CB : cold bend glass which is bent during the lamination process.

Maximum Size: 3600mm×18000mm, 2440mm×5000mm(convex)

Minimum Size: 300mm×600mm

Minimum radius of curvature : 600mm

Thickness: 4mm-19mm

Insulating glass

To protect the environment and to comply with national building regulations, Insulating Glass Units are a necessity of modern glass architecture.

NorthGlass Insulating Glass Units, can be provided as double glazed or triple glazed. In combination with our High-Performance Coatings and Argon gas filling, U-Values of 0,50 W/m²K are achievable.

With our new production line for the assembly of Insulating Glass Units,

NorthGlass can produce flat or curved, double or triple glazed units with a

maximum dimension of up to 3.6 m x 18.0 m. Due to our unique assembly process, stepped glass edges can be established along all sides. Together with our strong focus on quality, NorthGlass is the leading supplier for oversized insulating glass units in the world.

Maximum Size: 3600mm×18000mm

Minimum Size: 300mm×300mm

Printed Glass

Digital Printed Glass provides designers with additional architectural freedom. The variety of colours and patterns is infinite. The ceramic ink is then fired into the glass surface during the heat treatment. From there on the glass can be coated, curved, laminated or assembled into insulating glass units. The maximum dimensions are 3.3 m x 18.0 m.

Maximum Size: 3300mm×18000mm

Minimum Size: 300mm×300mm

Toughened Glass

With dimensions of 3.6 m x 18.0 m and “Roller Waves” of less than 0.08mm, NorthGlass Toughened Glass is the largest and highest quality heat treated glass available in the world. By making use of our parent company’ s unique tempering machines, anisotropies are maintained at

an absolute minimum, resulting in unparalleled levels of clarity. Northglass is a glass supplier who is committed to maintaining exceptionally highly standards of quality.

The strength and safety characteristics of Fully Toughened Glass are guaranteed by processing temperatures greater than 600℃ and a subsequent rapid cooling cycle.

NorthGlass Toughened Glass offers highest resistance to bending, impact loads, live loads and thermal shock. Fully toughened glass with its unique breakage pattern also ensures that the glass meets industry relevant safety characteristics.

NorthGlass Heat soak provides a decreased risk of spontaneous breakage as it is heat-soak tested for nickel-sulfide inclusions in accordance with appropriate standards.

FT : fully toughened

HS : heat strengthened

FTH : fully toughened and heat soak tested

Maximum Size:

Flat Tempered 3600mm×18000mm

Curved Tempered 3600mm×18000mm

Ordering :

Please indicate the following items when ordering:

(1 )Use :Place, Status—continuous use or intermittent use.

(2) Way of gas transportation: weight, type, proportion and ingredient.

(3) Temperature: inlet temperature and its change(standard state is 20℃).

(4) Pressure.

(5) Air flow.

(6) Motor: type,power,poles and brand requirement.

(7) Outlet direction and RPM: rotational direction and impeller RPM.

(8) Technical support required, please contact Mr. Wang 0379-64331321
