Qingdao REXI Industries Co., Ltd

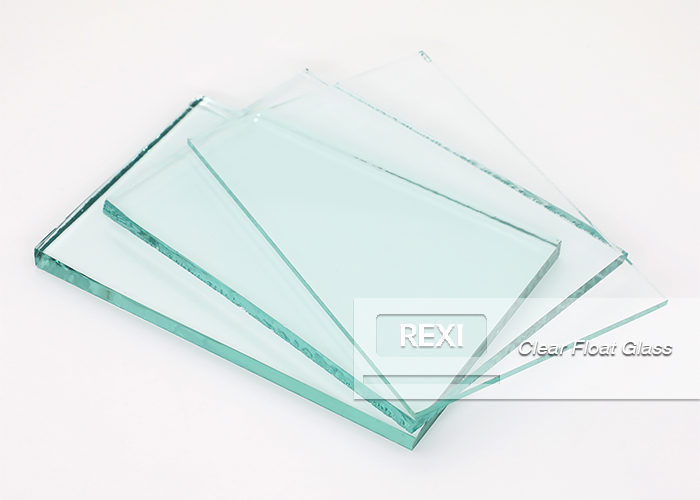

REXI Clear Glass is colorless and transparent, without body tinted or other staining methods. It has relatively higher transmittance and it is an indispensable material for the construction industry and optical equipment.

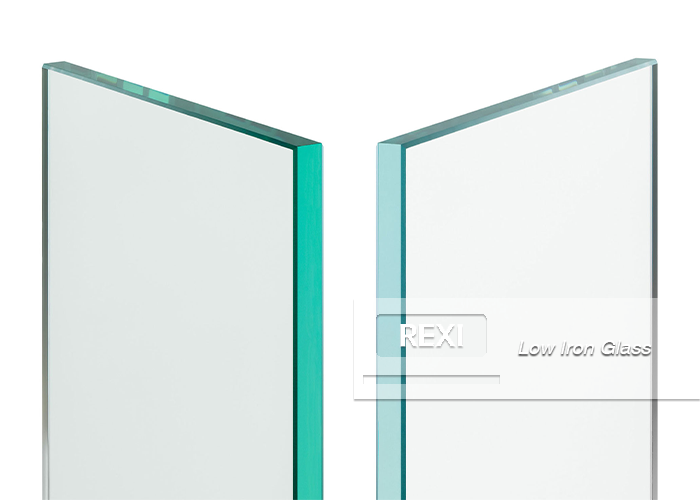

REXI Low Iron Glass is an ultra-clear glass, also known as crystal clear glass and high-transparent glass. It is a high-quality, multi-functional new high-grade glass variety with a light transmittance of over 91.5%. It has the characteristics of crystal clear, high-grade and elegant, and is known as the "crystal prince" of the glass family.



REXI Tinted Glass is produced by the float process with the addition of small quantities of metal oxides to color the normal clear glass mix. This coloration is achieved through adding metal oxides at the smelting stage.



REXI Reflective Glass is a solar control glass that has been carefully designed to meet the twin requirements of architects - the functional and the aesthetic.

REXI Clear Glass：

Thickness: 1.8mm, 2mm, 3mm, 4mm, 5mm, 5.5mm, 6mm, 8mm, 10mm, 12mm, 15mm, 19mm, etc.

Sizes: 1220x1830mm, 1600x2200mm, 1650x2140mm, 1830x2440mm, 2140x3300mm, 2140x3660mm, 2250x3300mm, 2440x3660mm, 3300x5100mm, etc.

REXI Low Iron Glass：

Thickness: 3mm, 3.2mm, 4mm, 5mm, 5.5mm, 6mm, 8mm, 10mm, 12mm, 15mm, 19mm, etc.

Sizes: 1830x2440mm, 2140x3300mm, 2140x3660mm, 2250x3300mm, 2440x3660mmm, 3300x5100mm, etc.

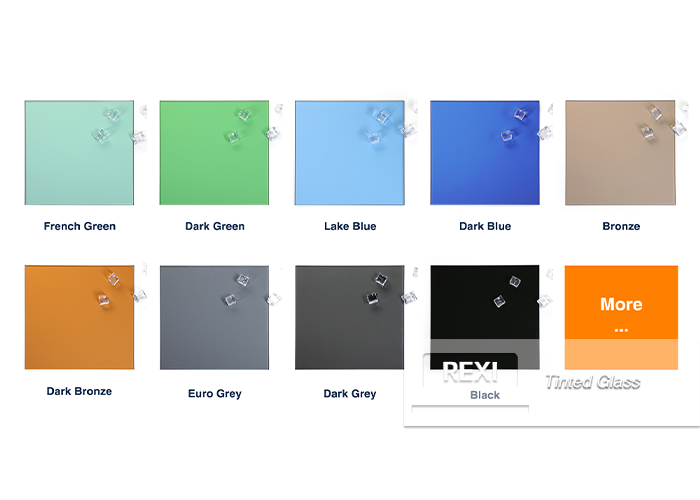

REXI Tinted Glass：

Colors: French green, dark green, lake blue, dark blue, bronze, dark bronze, euro grey, dark grey, black, etc.

Thickness: 4mm, 5mm, 5.5mm, 6mm, 8mm, 10mm, 12mm, etc.

Sizes: 1650x2140 mm, 1830*2440mm, 2140x3300mm, 2140x3660mm, 2250x3300mm, 2440x3660mm, etc.

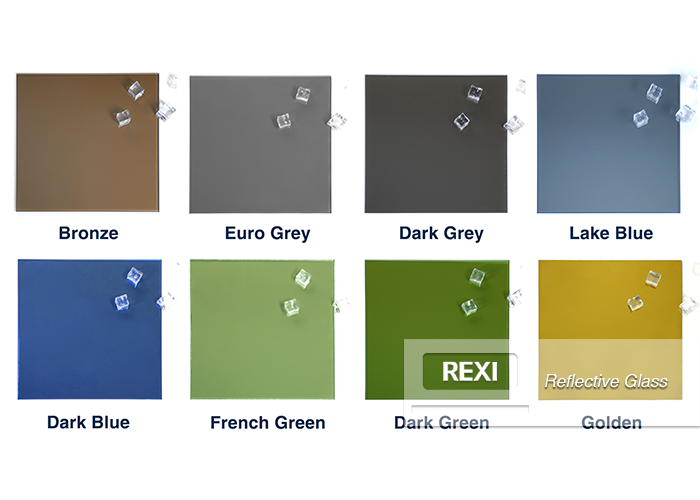

REXI Reflective Glass：

Colors: bronze, dark bronze, Euro grey, dark grey, French green, dark green, lake blue, dark blue, silver, golden, etc.

Thickness: 4mm, 5mm, 5.5mm, 6mm, 8mm, 10mm, 12mm, etc.

Sizes: 1650x2140 mm, 1830*2440mm, 2140x3300mm, 2140x3660mm, 2250x3300mm, 2440x3660mm, etc.

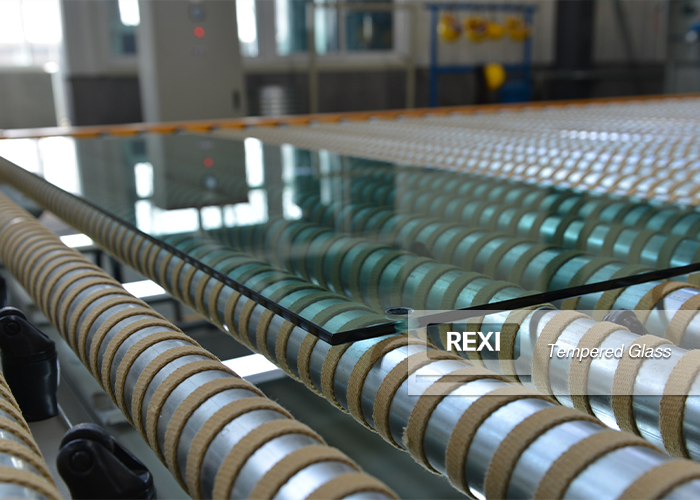

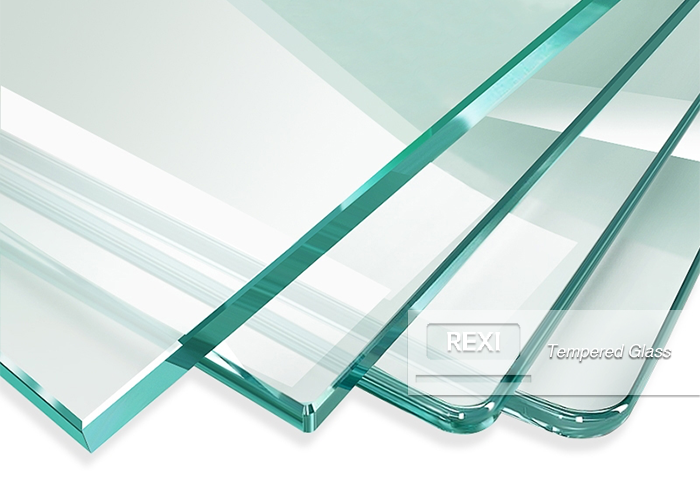

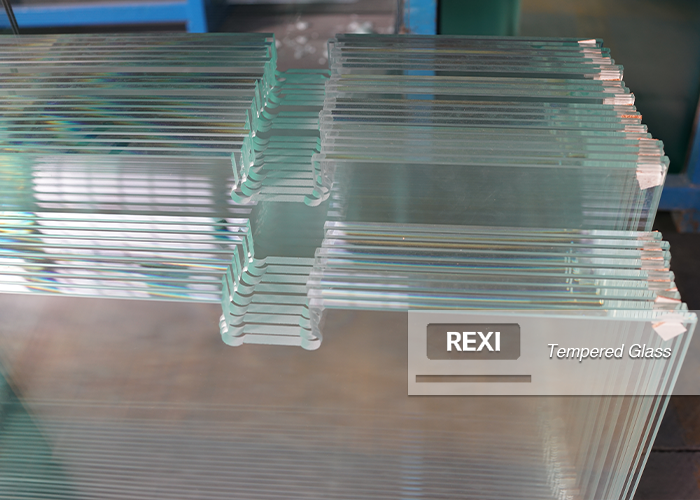

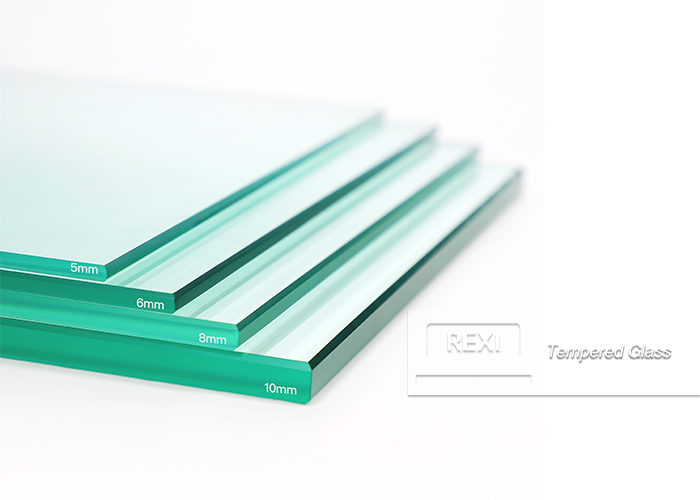

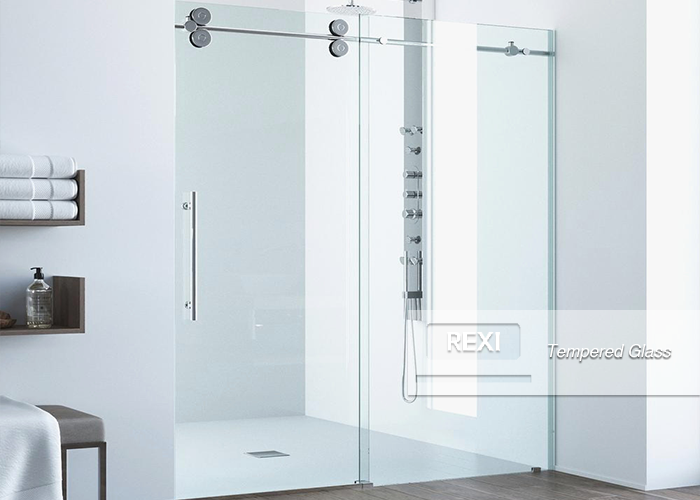

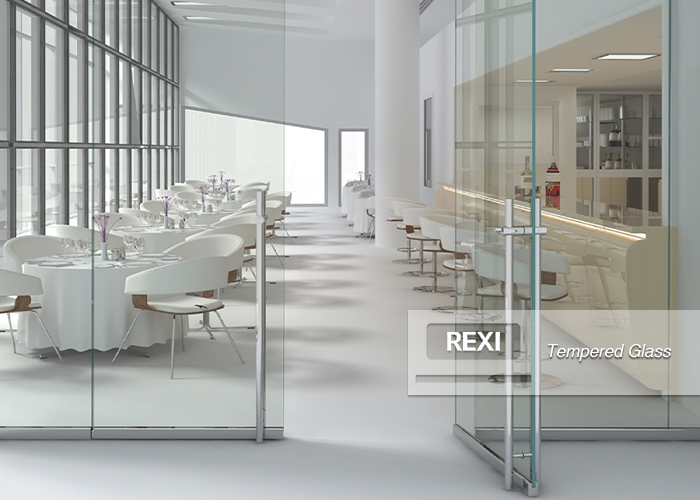

REXI Tempered Glass is made by heating flat glass to just below its softening temperature (650°C) and suddenly chilling it with jets of cold air. It results in the outer skins under powerful compressive stress and the interior with severe tensile stress. In consequence, the impact applied to the glass will be overcome by the compressive stress on the surfaces to assure safety of use. It is ideal for areas with high wind loads and areas where human contacts are an important consideration.

ADVANTAGES:

- High strength: About five times stronger than regular glass, more durable and resistant to breakage.

- High safety: Once tempered glass break, it shatters into small, rounded pieces, reducing the risk of injury.

- Heat resistance: Withstands abrupt temperature change of 220 Centigrade, ideal for high heat applications.

SPECIFICATIONS:

Thickness: 3mm, 3.2mm, 4mm, 5mm, 6mm, 8mm, 10mm, 12mm, 15mm and 19mm, etc.

Max. Size: 13,000mm x 3,300mm

Min. Size: 100mm x 300mm

APPLICATIONS:

REXI Laminated Glass is made by good quality adhesive interlayer and advanced bond technology. Laminated Glass is a kind of glass made of two or more sheets of top quality glass bonded together with a polyvinylbutyral (PVB) interlayer. After the PVB interlayer has been placed between the glass sheets, the whole assembly is subjected to heat and pressure. This makes the complete adhesion of the vinyl and the glass. In the event of breakage, the glass fragments remain bonded to the plastic interlayer.

ADVANTAGES:

- High safety: if cracks, splinters will adhere to the interlayer and not scatter, keeps away the injuring.

- Energy saving: impedes the transmission of solar heat and reduces cooling loads, reduces the energy bills.

- Sound control: PVB interlayer is an effective absorber of sound, offers a quieter environment.

SPECIFICATIONS:

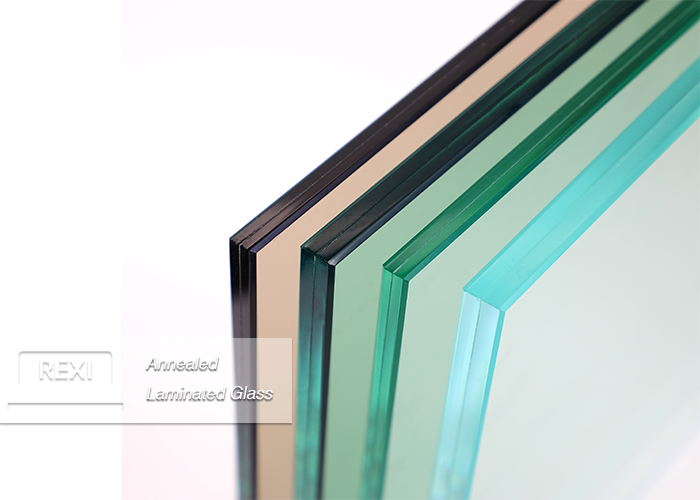

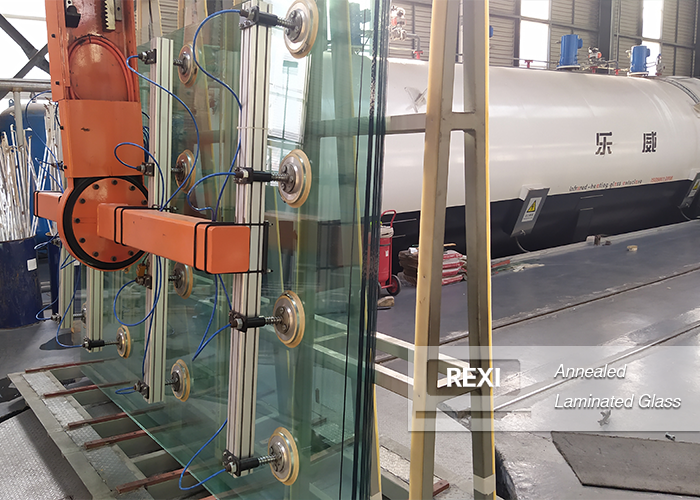

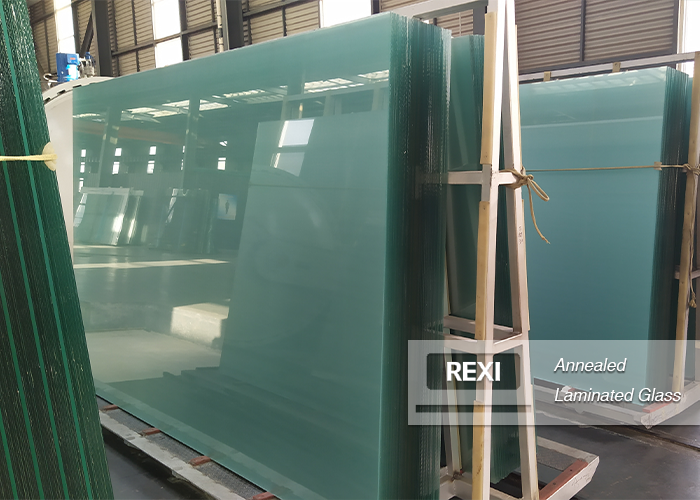

Annealed Laminated Glass：

PVB colors: clear, green, blue, bronze, grey, milk white, etc.

Thickness: 3+0.38+3mm, 3+0.76+3mm, 4+0.38+4mm, 4+0.76+4mm, 5+0.76+5mm, 6+0.76+6mm, etc.

Sizes: 1830x2440mm, 2000x2440mm, 2140x3300mm, 2140x3660mm, 2250x3300mm, 2440x3660mm, etc.

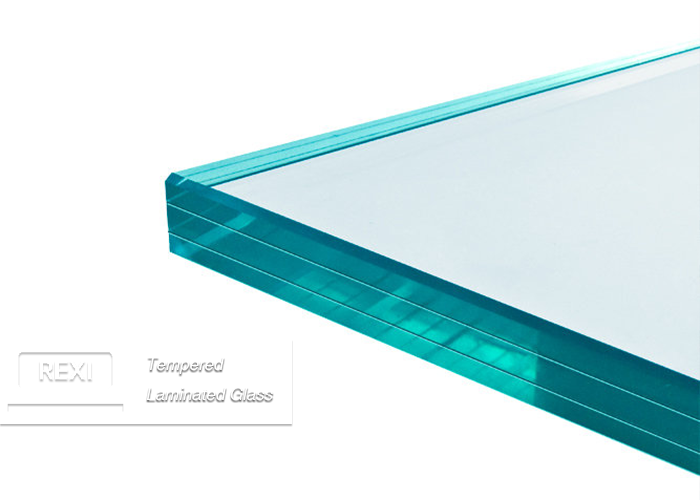

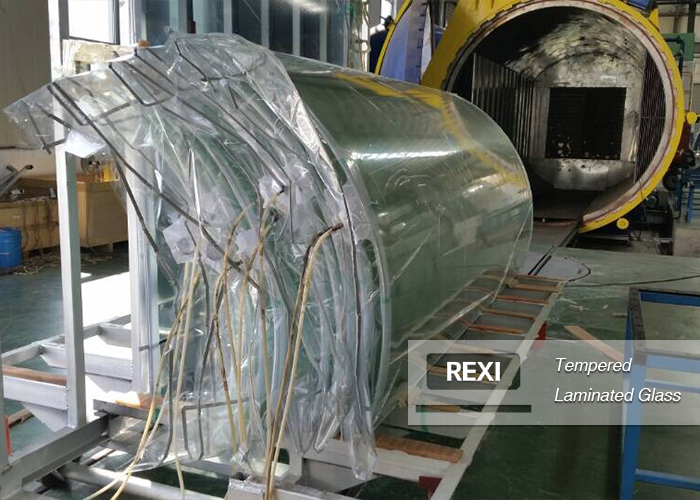

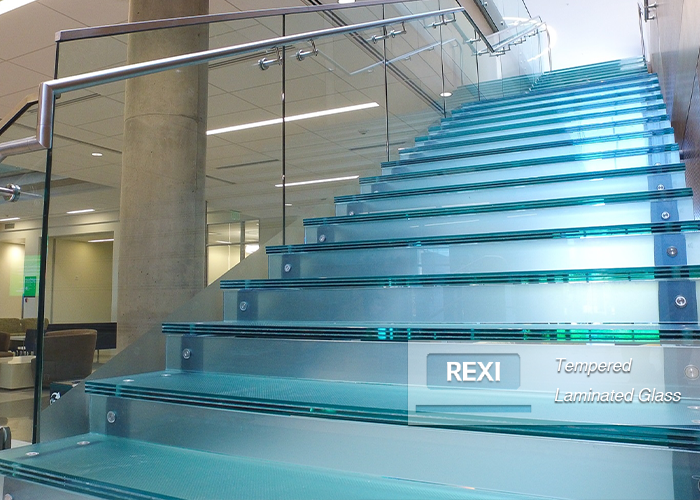

Tempered Laminated Glass:

Interlayers: PVB, SGP and EVA.

Interlayer thickness: 0.76mm, 1.14mm, 1.52mm, 2.28mm, etc.

Max. Size: 13,000mm * 3,300mm

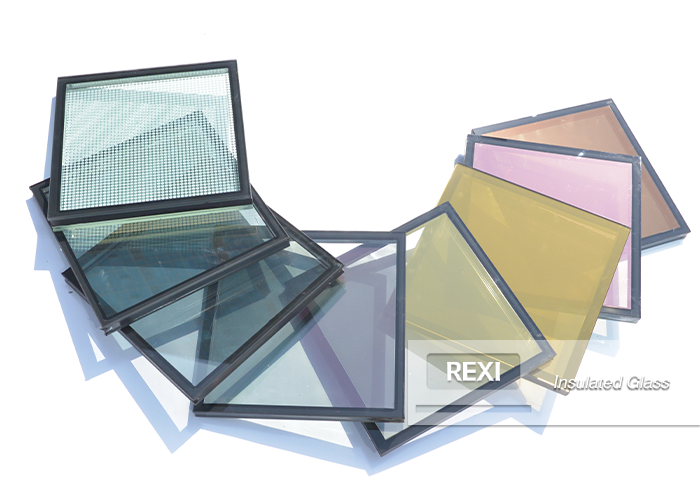

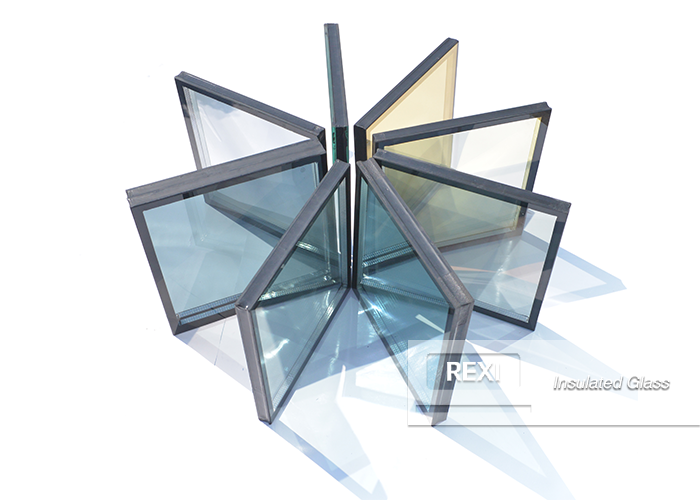

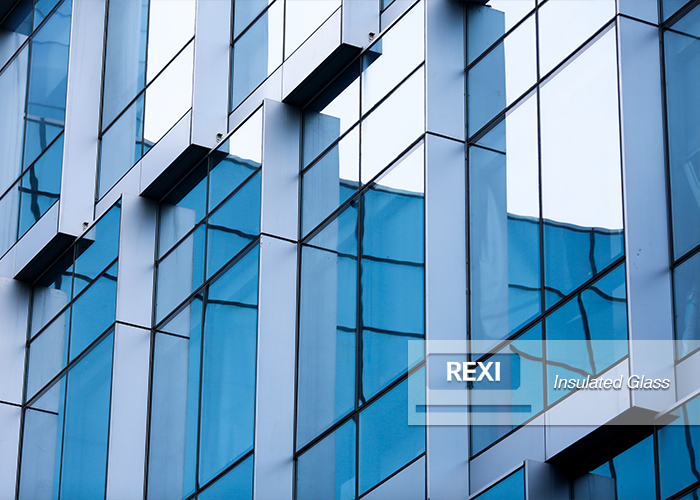

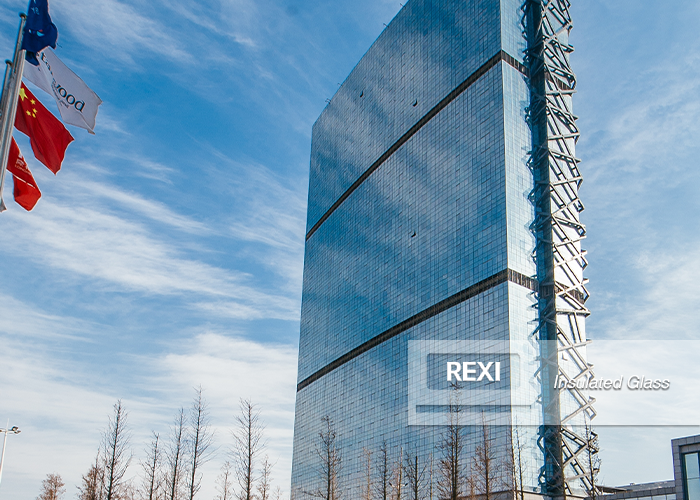

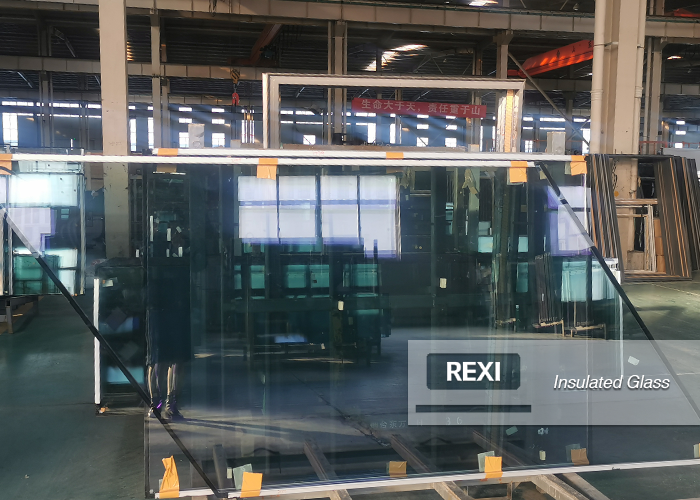

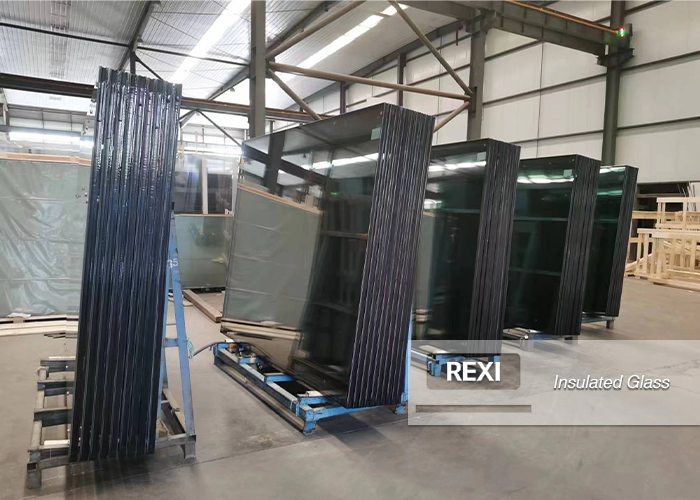

REXI Insulated Glass is made of two or more pieces of glass with effective support and evenly spaced and sealed at the periphery to form a dry gas space between the glass interlayers. The interlayer of the insulated glass is initially dry air, and other gases with a lower thermal conductivity than air are currently used. The minimum thickness of the gas interlayer of the insulating glass should not be less than 6mm, otherwise it will not function as thermal insulation. However, the thickness should not be too large, if it is too large to make the insulated glass too thick. In order to standardize the production of the frame, the gaps of the insulated glass are currently divided into 6, 9, and 12, 14, and 16 mm.

ADVANTAGES:

- Energy efficiency: U-value down to 0.51 (W/㎡.K), provides excellent insulation and reduces heat loss or gain.

- UV block: blocks up to 99% of the sun's harmful UV rays, minimizes fading to furnishings.

- Noise reduction: greatly reduces sounds and noise transmission, offers a quieter environment.

SPECIFICATION:

Low E coatings: single silver, double silver and triple silver

Gas filling: air, argon or krypton

Spacer thickness: 6mm, 9mm, 12mm, 16mm, 19mm etc.

Size: min. size 300x300mm - max. size 15,000x3,300mm

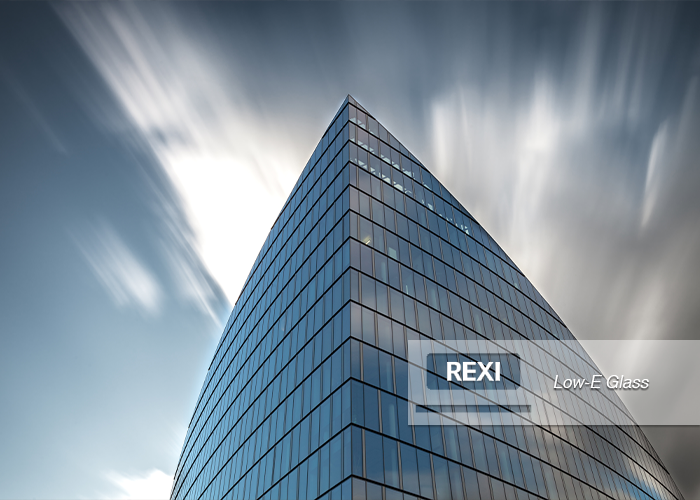

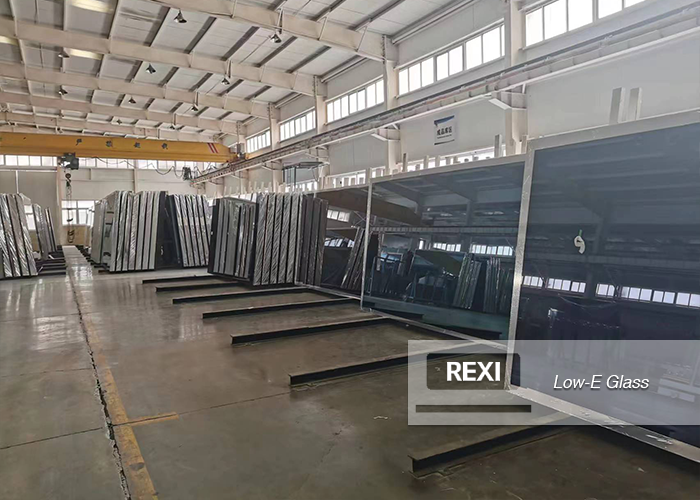

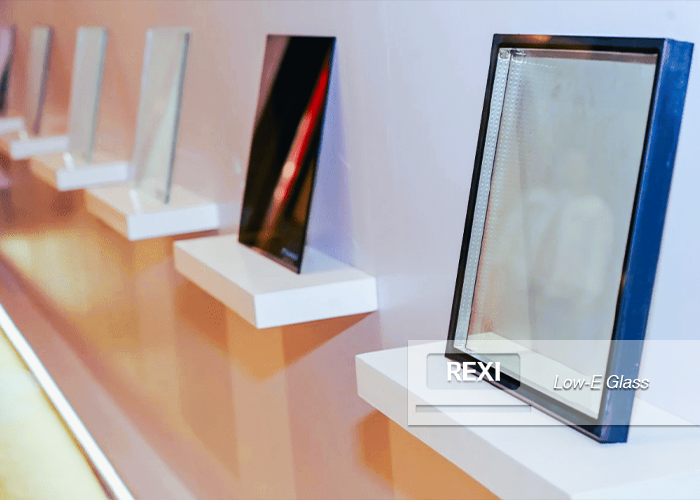

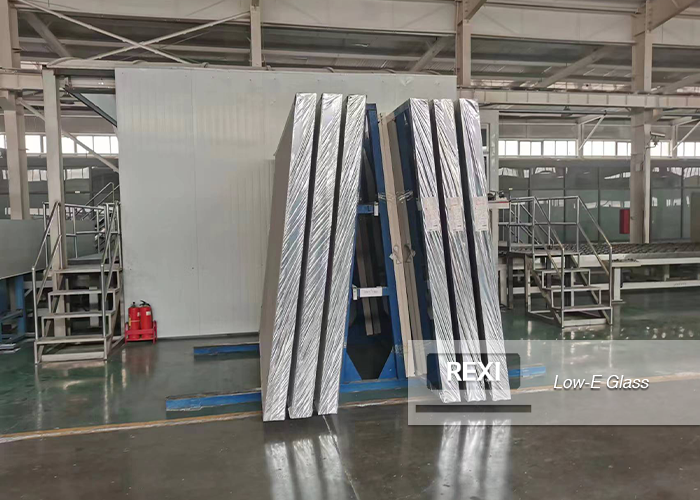

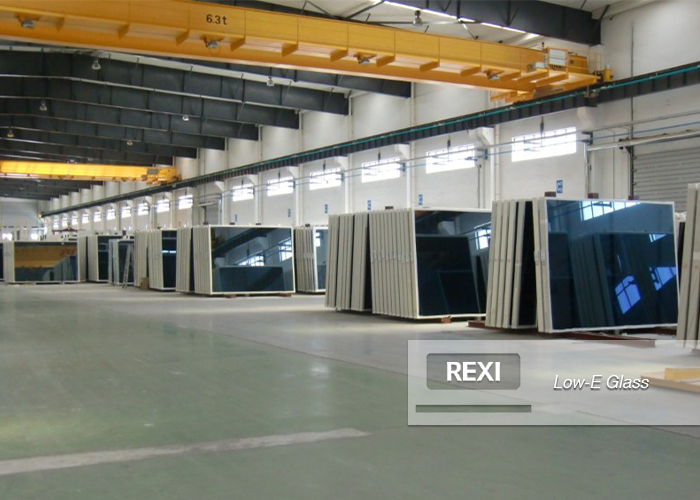

REXI Low Emissivity Glass is a member of the coated glass family coated with one or more layers of metal or compound films on the quality float glass by using magnetic sputtering method. It has low thermal conductivity and high light transmittance, ensuring visible light transmittance and reducing light pollution based on prevention of heat losses.

SOFT COAT LOW E GLASS

ADVANTAGES:

- Energy efficient: stop heat transfer and reduce heat loss by as much as 50%, greatly reduces energy bills.

- UV block: blocks the sun's harmful UV rays, minimizes fading to interior furnishings.

- Versatility: comprehensive range of reflective colors and harmonizes with modern buildings.

SPECIFICATION:

Coatings: single silver, double silver and triple silver

Substrate: clear glass, low iron glass and tinted glass

Thickness: 3.2mm, 4mm, 5mm, 6mm, 8mm, 10mm, 12mm, 15mm etc.

Sizes: 2140x3300mm, 2140x3660mm, 2440x3660mm, max. 12000x3300mm.

HARD COAT LOW E GLASS

ADVANTAGES:

- Easy processing: easy to be further processed for tempering, laminating or insulating, no edge deletion.

- Low cost: can be used as a single layer or may be stored for a long period of time for further processing.

- Long life: stable chemical and mechanical performance, high temperature resistance, and anti-oxidation.

SPECIFICATION:

Coating color: clear, gold and cool grey etc.

Substrate: clear glass, low iron glass and tinted glass.

Thickness: 3.2mm, 4mm, 5mm, 6mm, 8mm, 10mm, etc.

Sizes: 1830x2440mm, 2140x3300mm, 2140x3660mm, 2250x3300mm, 2440x3660mm, etc.

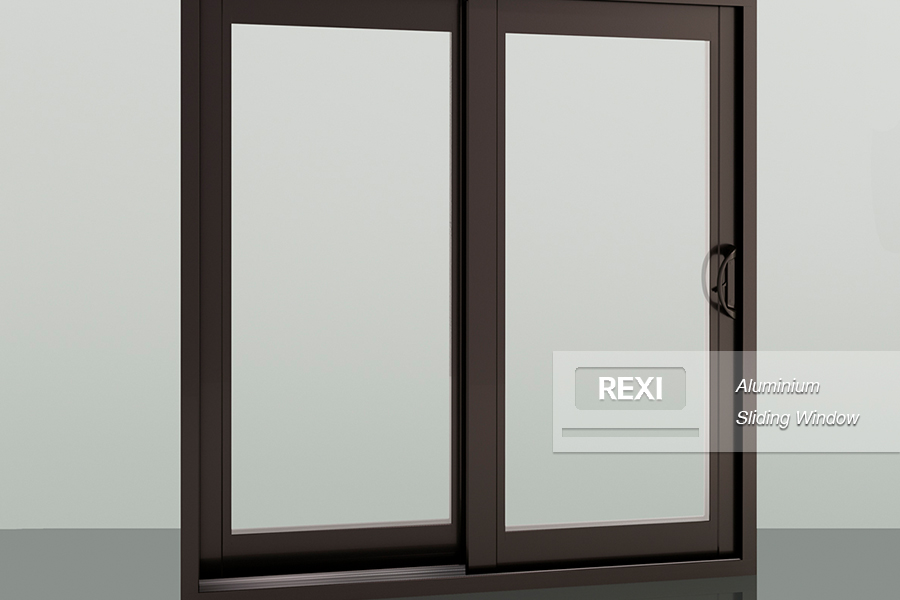

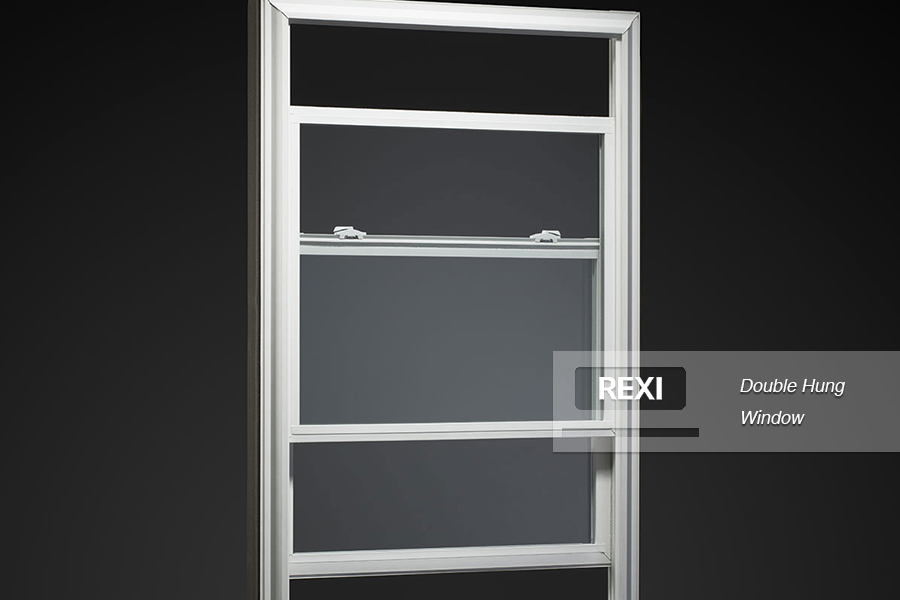

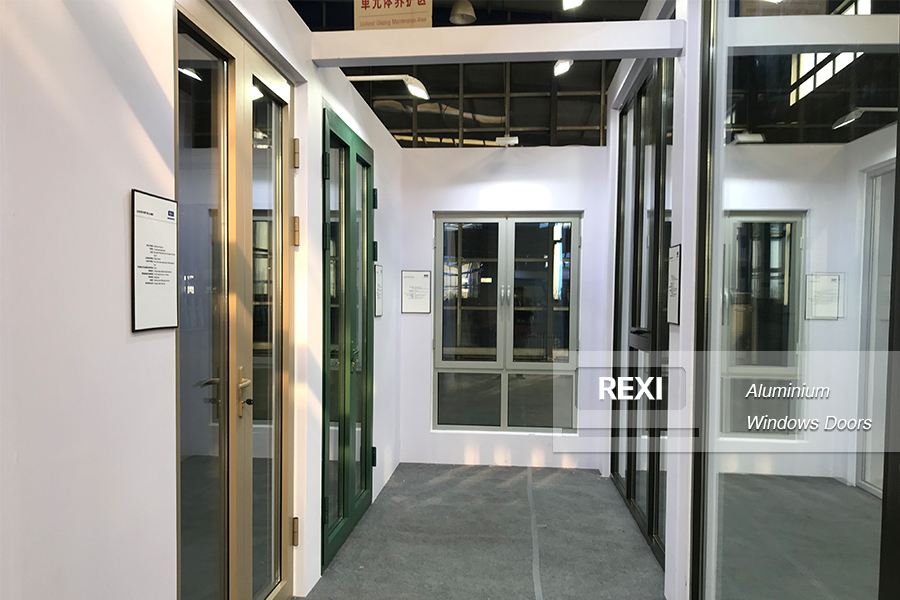

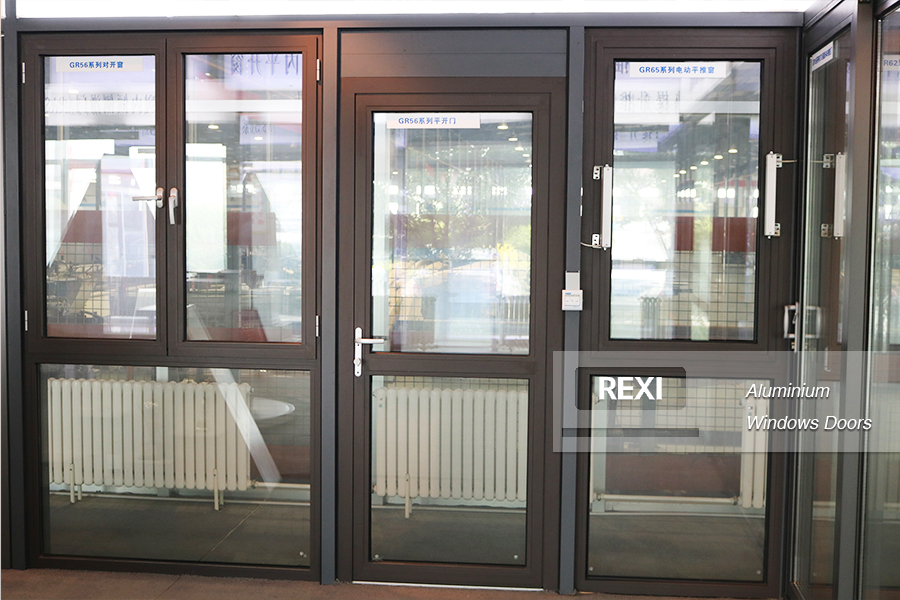

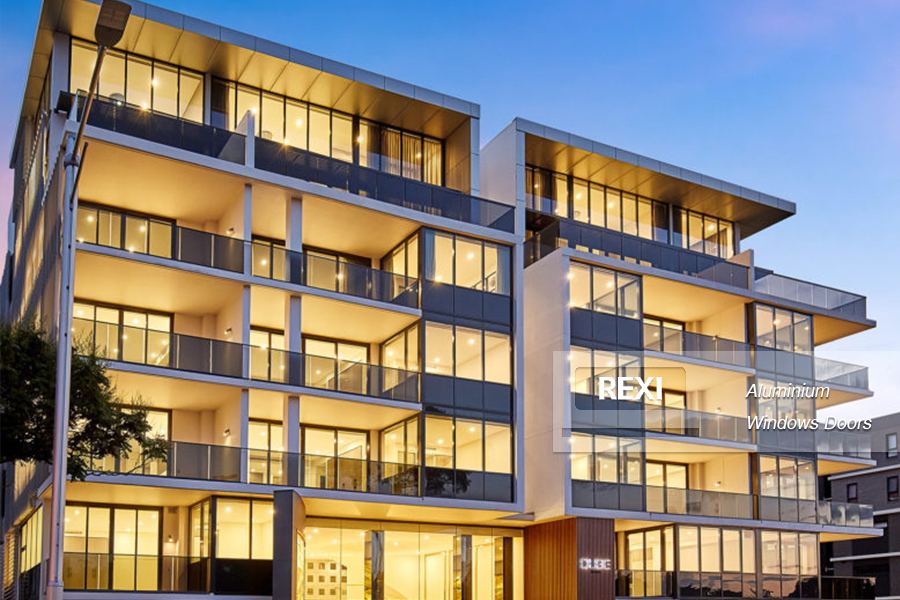

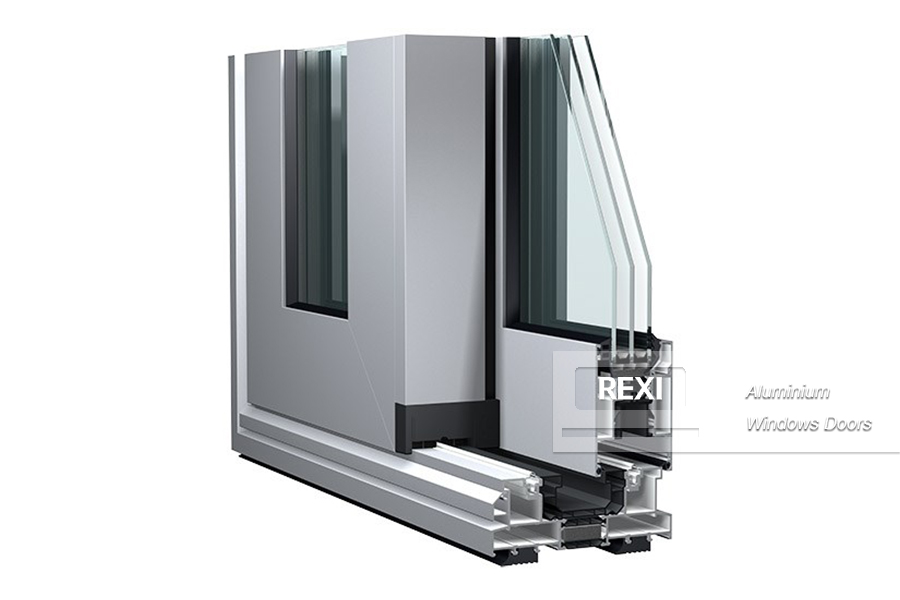

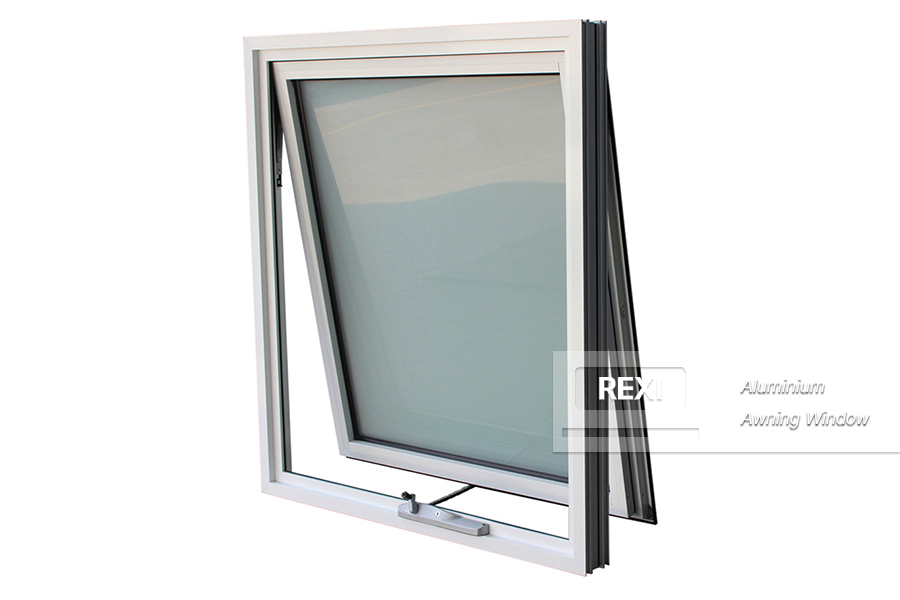

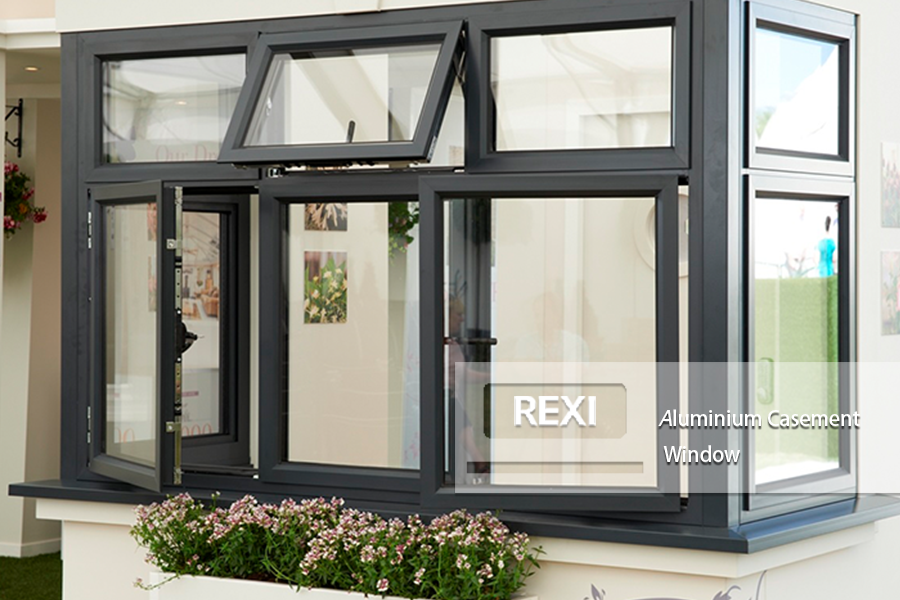

REXI selection of aluminum windows offers a wide range of styles and product configurations. With extensive experience in the full lifecycle of aluminum systems—including design, fabrication, and ultimately, as a supplier—we engineer solutions to suit many styles of houses throughout the world. Our comprehensive aluminum windows product range including awning window, double hung window, casement window, folding window, sliding window etc. offers outstanding variety, genuine value and professional advice.

ADVANTAGE:

- Excellent Energy Efficient - system U-value low to 0.8 W/㎡.K

Overall aluminum windows thermal performance is a function of the frame and the glazing infill panel. REXI have specially designed aluminum window system and the system U-value is low to 0.8 W/㎡.K

- Strong Moisture Protection - water penetration resistance high to 1000 Pa

REXI mechanically-joined corners stay square and true over years of use, helping to keep homes dry. The water penetration resistance high to 1000 Pa.

- Choice Materials & Precise Fabrication - a wide variety of aesthetic variations

With choice materials, we offer a wide variety of aesthetic variations of aluminum finish, glazing and hardware through a precise fabrication.

- System Achievements:

• Energy Efficiency U-value low to 0.8 W/㎡.K

• Water Penetration Resistance high to 1000 Pa

• Air infiltration low to 0.3L/S*m2(0.06cfm/ft2)

• Sound Resistance Rw to 68 dB

• Durable Powder Coating Warranty to 20 years

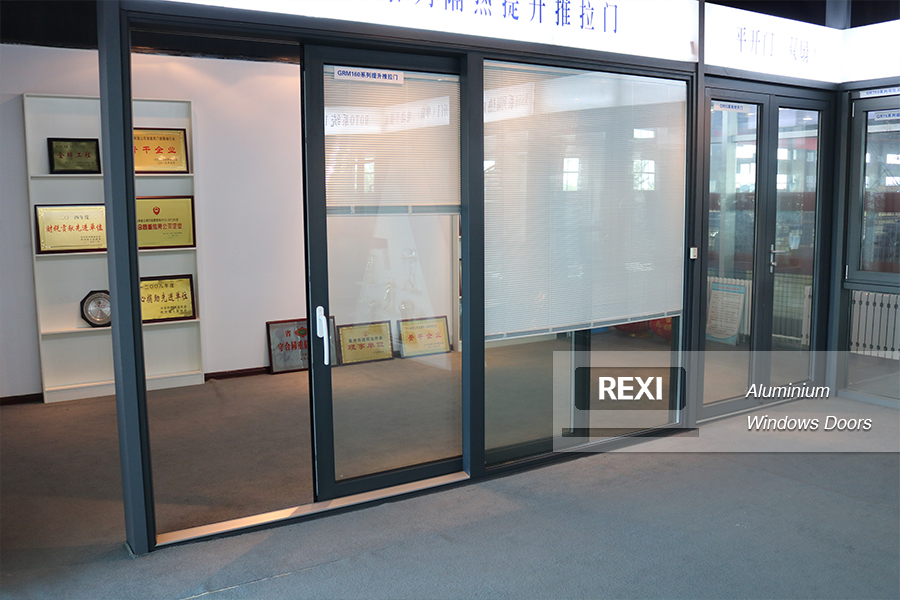

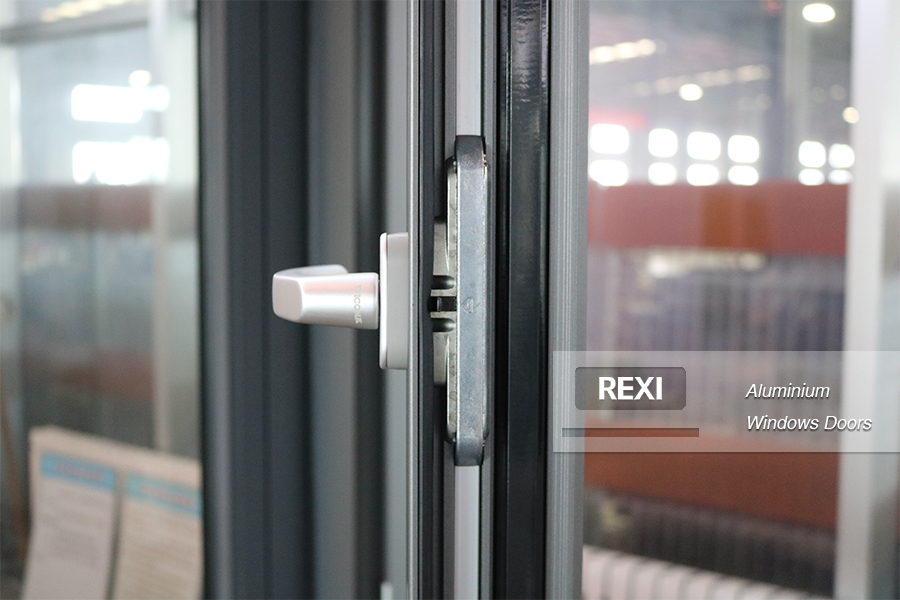

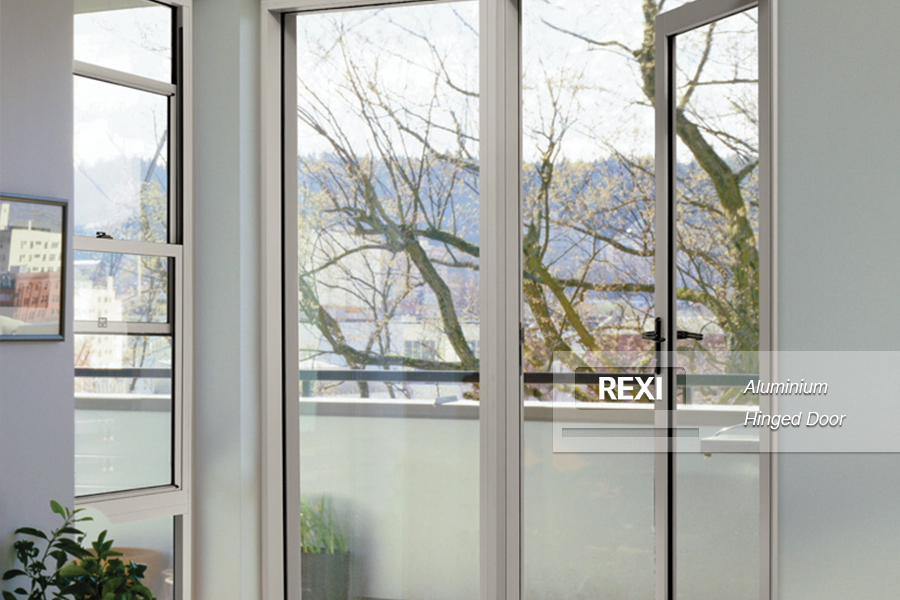

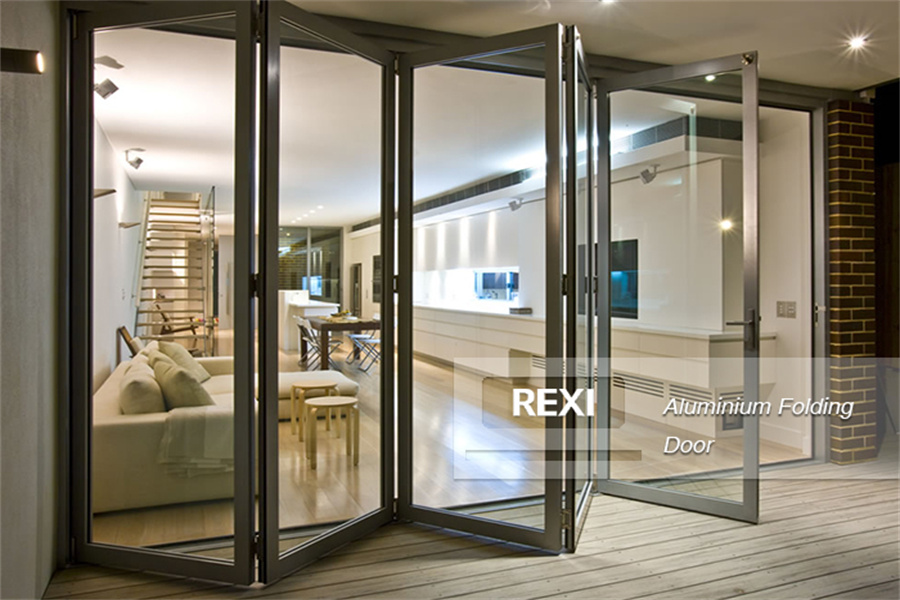

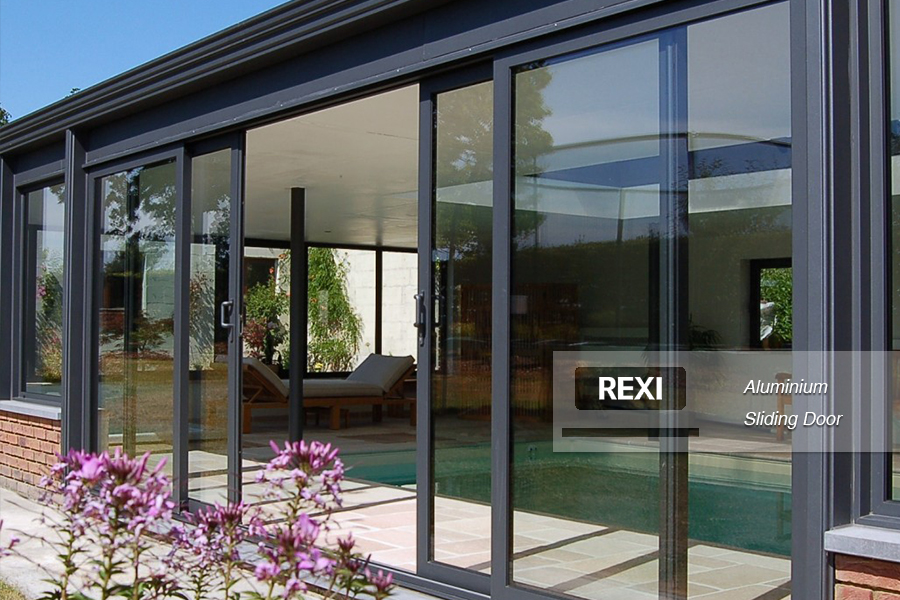

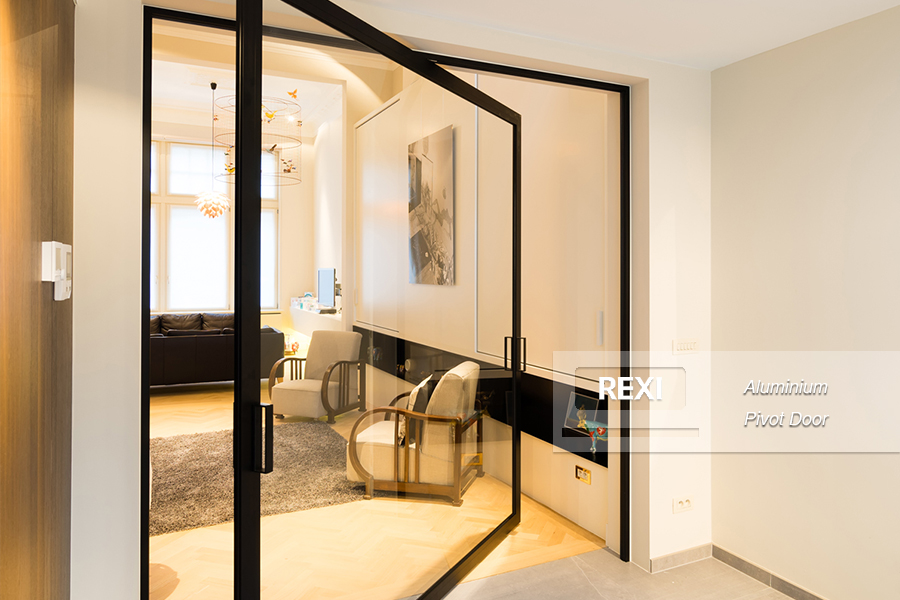

REXI specializes in the design, fabrication and engineering of high performance commercial and residential aluminum doors. We strive to deliver products of the highest quality and of great value, supported with professional assistance and advice for all our customers’ project requirements.  Our comprehensive aluminium doors product range include Hinged Door, Pivot Door, Folding Door, Sliding Door etc.

ADVANTAGE:

- Excellent Energy Efficient - system U-value low to 0.8 W/㎡.K

Overall aluminium doors thermal performance is a function of the frame and the glazing infill panel. REXI have specially designed aluminum doors system and the system U-value is low to 0.8 W/㎡.K

- Strong Moisture Protection - water penetration resistance high to 1000 Pa

REXI mechanically-joined corners stay square and true over years of use, helping to keep homes dry. The water penetration resistance high to 1000 Pa.

- Choice Materials & Precise Fabrication - a wide variety of aesthetic variations

With choice materials, we offer a wide variety of aesthetic variations of aluminum finish, glazing and hardware through a precise fabrication.

- System Achievements:

• Energy Efficiency U-value low to 0.8 W/㎡.K

• Water Penetration Resistance high to 1000 Pa

• Air infiltration low to 0.3L/S*m2(0.06cfm/ft2)

• Sound Resistance Rw to 68 dB

• Durable Powder Coating Warranty to 20 years

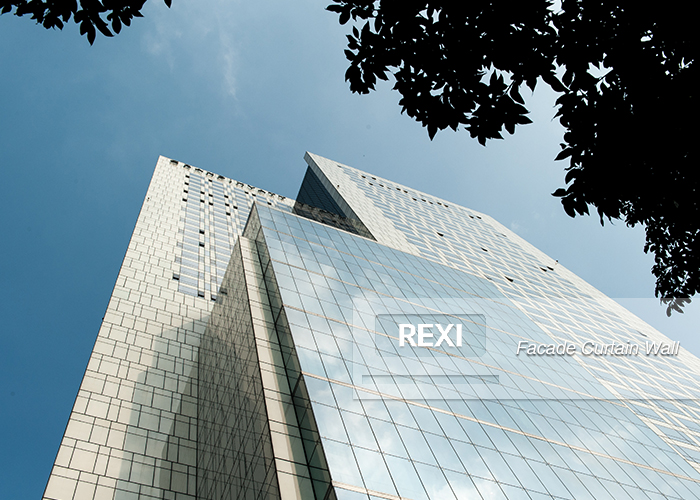

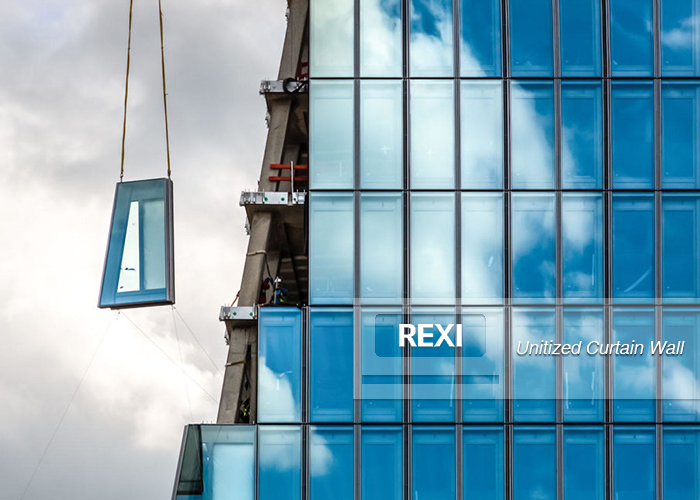

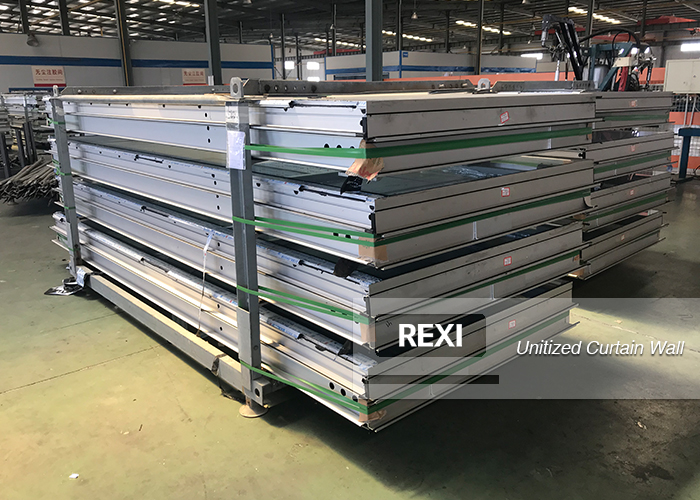

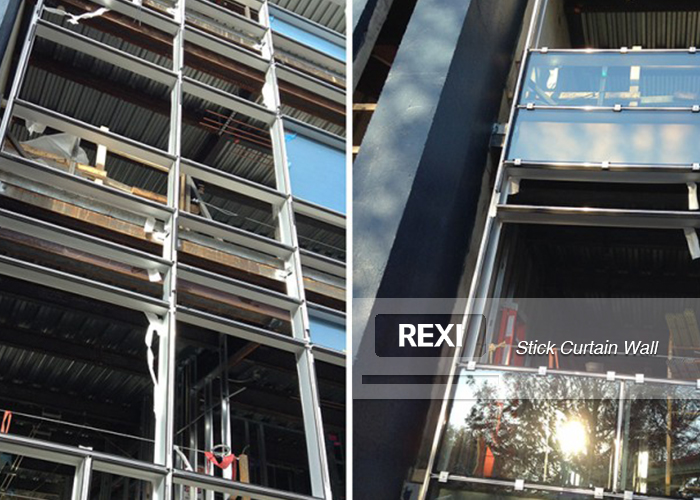

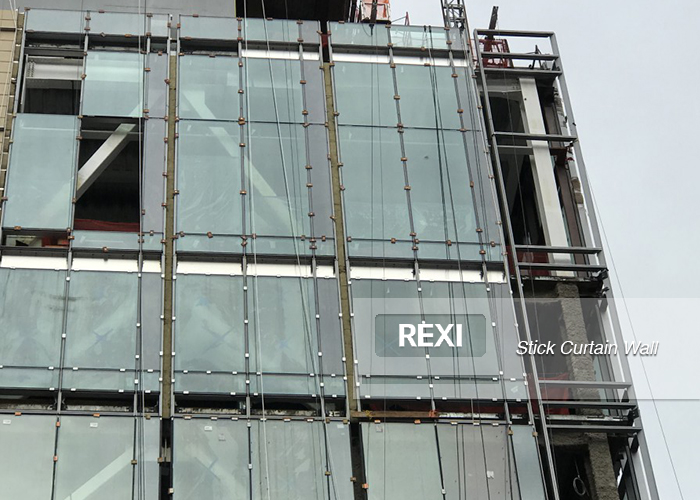

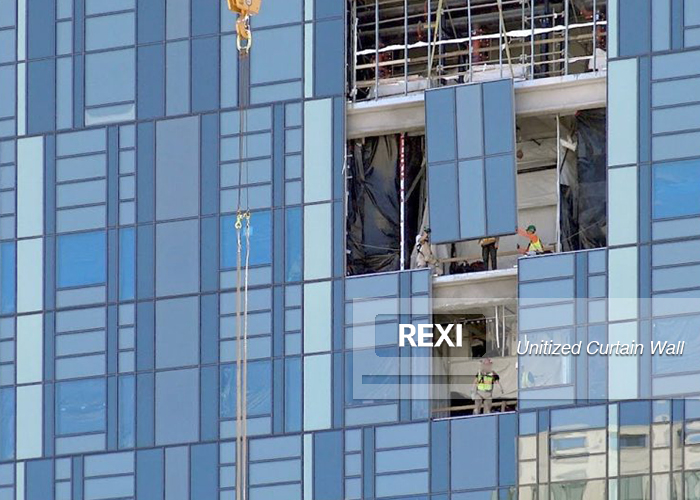

REXI specializes in the design, fabrication and engineering of high performance commercial and residential aluminum doors. We strive to deliver products of the highest quality and of great value, supported with professional assistance and advice for all our customers’ project requirements. REXI comprehensive products and services range include the design, fabrication and installation of Unitized Curtain Wall, Stick Curtain Wall, and Spider Glass Curtain Wall etc.

ADVANTAGES:

- Excellent Energy Efficient - system U-value low to 0.8 W/㎡.K

Overall curtain wall thermal performance is a function of the glazing infill panel, the frame, construction behind opaque (spandrel and column cover) areas, and the perimeter details. REXI have specially designed curtain wall system. The system thermal insulation U-value is low to 0.8 W/㎡.K.

- Strong Moisture Protection - water penetration resistance high to 1000 Pa

Curtain walls have the primary purpose of keeping air and water out of the building, essentially acting as both a buffer and an insulator. Unlike discontinuous windows, which are smaller units and can rely to a high degree on sill flashings to capture frame corner leakage, curtain walls cover large expanses of wall without sill flashings at each glazed opening. REXI specially patented curtain wall system water penetration resistance high to 1000 Pa.

- Unique Visual Appearance-thorough design and precise fabrication

REXI has strong design team which can make the thorough calculation and precise fabrication, which offer a wide variety of aesthetic variations allowing architects to use any combination of finishes, infills, external feature caps and glazing specification

- System Achievements:

· Energy Efficiency U-value low to 0.8 W/㎡.K

· Water Penetration Resistance high to 1000 Pa

· Durable Powder Coating Warranty to 20 years

· Glazing Unit Weight max to 1,000 kg

· Glazing Thickness from 4mm to 60 mm

· Sound Resistance Rw to 68 Db

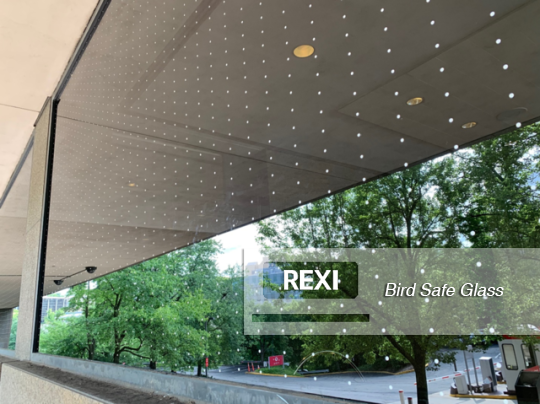

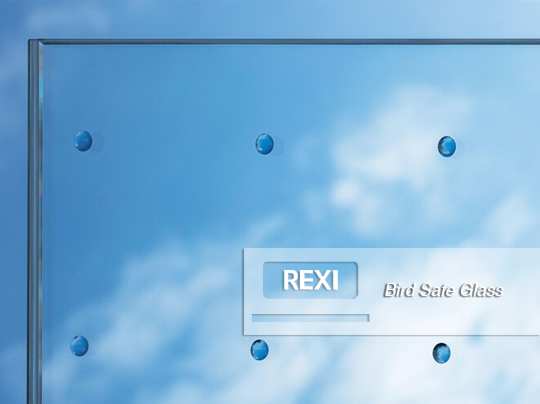

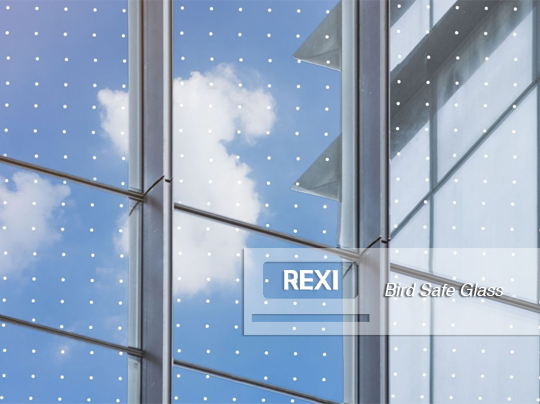

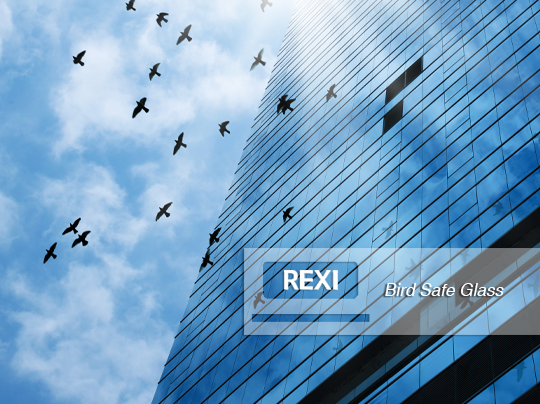

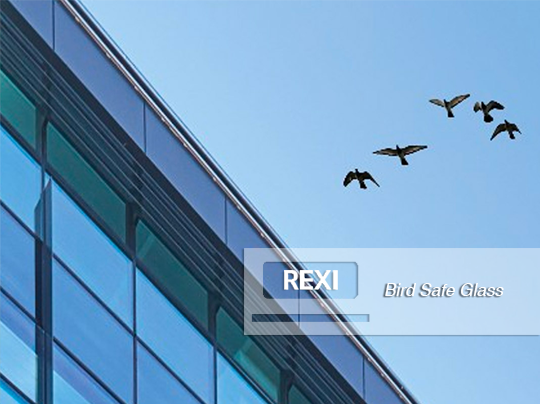

REXI Bird Safe Glass is a glass friendly to birds which offers an innovative solution to the critical issue of bird-window collisions. Utilizing carefully crafted dot and linear patterns on the exterior surface, REXI Bird Safe Ceramic Frit Glass provide a visible warning to birds, effectively reducing the risk of collisions with glass.

While glass window and glass curtain wall offer visual connectivity for humans, they pose a significant threat to birds due to the lack of warning signals. Research shows that up to a billion birds in the United States alone fall victim to bird-window collisions annually, underlining the importance of addressing this problem. With growing regulatory attention to birds’ protection issue, REXI Bird Friendly Glass emerges as an innovative and essential solution at the intersection of environmental conservation and architectural design.

Creating a visual contrast on the glass through various methods serves as a visible marker to birds, aiding them in detecting the glass as a physical barrier and avoiding collisions. The effectiveness of the solution depends on the technology utilized, as well as the size and spacing of the pattern elements. Additionally, the building's surroundings, lighting conditions, and the outside reflectivity of the glazing also contribute to the solution's effectiveness.

ENERGY PERFORMANCE
REXI bird friendly glass offer a series of specifically ceramic fritted patterns on the glass surface, it can be combined with high-performance low e coatings to provide thermal insulation and solar control properties to the glazing. These coatings help maintain a comfortable indoor temperature by reducing the amount of solar energy entering through the glazing in the summer, and minimizing heat loss during the winter.

ECOLOGICAL PROTECTION
REXI bird safe glass offers a visible pattern that is translucent rather than opaque. It is applied on surface 1 with a low-E coating on surface 2 for optimal performance results and it help deter bird-building collisions.

REXI birds safe friendly glass made in China has got an American Bird Conservancy (ABC) Threat Factor (TF) of 17.  The glass exceeds the ABC’s minimum standard for effective collision deterrent materials of TF 30.  ABC uses Threat Factors to indicate the relative ability of materials to reduce collisions.  Products with lower TFs are considered more effective at preventing collisions.
