Qingdao AEON Glass Co., Ltd.

High quality clear float and modern mirror equipment combine to produce competitively priced mirrors of exceptionally high quality. This improved manufacturing process also improves the optical quality of the product and significantly increases its longevity through a better resistance to corrosion. It is suitable for further processed and edge working. Our colored mirror is produced by vacuum coating a layer of aluminum on the tinted glass, which can supply you a different and nice decorating effect.

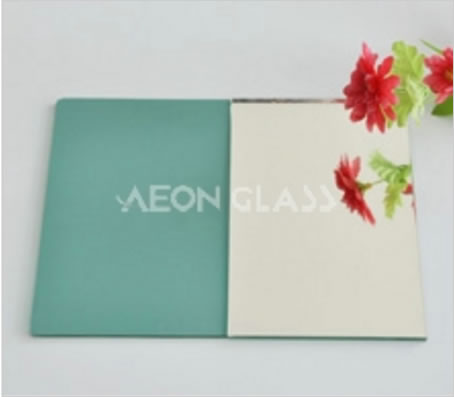

ALUMINUM MIRROR FEATURES:

1. Coated on the high quality float glass, exact image.

2. Double coated Italian FENZI water-proof paint

3. The plating layer is rigid and bonded. The protective layer is impregnable with good erosion-resistant

4. Actual and accurate reflection, high Optical quality and durability

5. Easy to be cut, drilled, or beveled, could be made into wall mirror, decorative mirror, safety mirror, furniture mirror etc.



ALUMINUM MIRROR SPECIFICATION:

Glass Color: Clear, Ultra clear, Bronze, Euro grey, Dark blue, Light blue, Dark green, Light Green, etc.

Back Paint Color: Grey, Blue, Green, White etc

Thickness: 2mm, 3mm, 4mm, and 5mm etc

Sizes: 1524x2134mm, 1220x1830mm, 1830x2440mm, 2134x3300mm and 2250x3300 etc.

SILVER MIRROR FEATURES:

1. High reflective, true image reflectance with virtually no distortion

2. High optical quality and durability.

3. The mirror surface is clear and bright, giving distinct and life like image.

4. The plating layer is rigid and bond and the protective layer impregnable with good erosion-resistance.

5. Easy to be cut, drilled, or beveled, could be made into wall mirror, decorative mirror, safety mirror, furniture mirror etc.

SILVER MIRROR SPECIFICATION:

Glass Color: Clear, Ultra clear, Bronze, Euro grey, Dark blue, Light blue, Dark green, Light Green, etc.

Back Paint Color: Grey, Blue, Green, White etc

Thickness: 2mm, 3mm, 4mm, 5mm and 6mm etc.

Sizes: 1524x2134mm, 1830x1220mm, 1830x2440mm and 2134x3300mm, 2250x3300 etc.

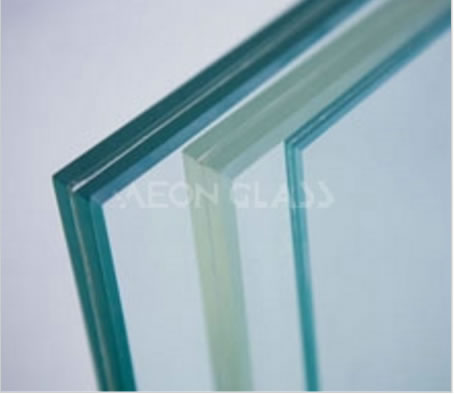

Laminated Glass is a kind of glass made up of two or more sheets of top quality glass bonded together with a polyvinylbutyral (PVB) interlayer. After the PVB interlayer has been placed between the glass sheets, the whole assembly is subjected to heat and pressure. This makes the complete adhesion of the vinyl and the glass. In the event of breakage, the glass fragments remain bonded to the plastic interlayer.



FEATURES:

1. Extremely high safety: The PVB interlayer withstands penetration from impact. Even if the glass cracks, splinters will adhere to the interlayer and not scatter. In comparison with other kinds of glass, laminated glass has much higher strength to resist shock, burglary, burst and bullets.

2. Energy-saving building materials: PVB interlayer impedes the transmission of solar heat and reduces cooling loads.

3. Create aesthetic sense to buildings: Laminated glass with a tinted interlayer will beautify the buildings and harmonize their appearances with surrounding views which meet the demand of architects.

4. Sound control: PVB interlayer is an effective absorber of sound.

5. Ultraviolet screening: The interlayer filters out ultraviolet rays and prevents the furniture and curtains from fading effect



SPECIFICATION:

PVB Color: Clear, Green, Blue, Bronze, Grey, Milk white etc.

Glass Color: Clear, French Green, Dark Green, Ford Blue, Dark Blue, Bronze, Euro Grey etc. available with reflective glass also.

Thickness: 3+0.38+3mm, 4+0.38+4mm, 5+0.38+5mm, 6+0.38+6mm, 3+0.76+3mm, 4+0.76+4mm, 5+0.76+5mm, 6+0.76+6mm etc, could be produced as per request.

Sizes: 1830x2440mm, 2134x3300mm, could be produced as per request.

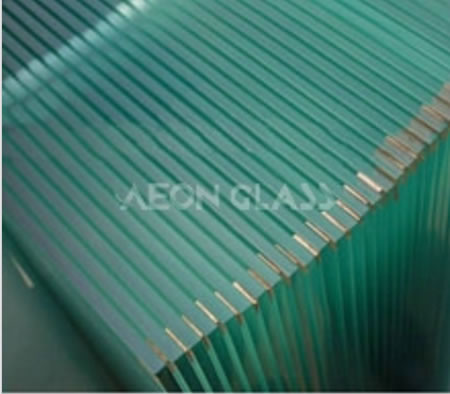

 It results in the outer skins under powerful compressive stress and the interior with severe tensile stress. In consequence, the impact applied to the glass will be overcome by the compressive stress on the surfaces to assure safety of use. It is ideal for areas with high wind loads and areas where human contacts are an important consideration.



FEATURES:

1. 5 times harder than ordinary float glass, stronger resistance to thermal breakage than annealed or heat strengthened glass.

2. Once breakage occurs, the glass disintegrates into small cubical fragments, which are relatively harmless to human body.

3. It withstands abrupt temperature change of 220 Centigrade.

4. Sizes are produced as per customer request. Once tempered, it can not be cut down.



STANDARDS:

China GB15763.2-2005 and 9963－1998; Europe EN 12600: 2002, 16 CFR 1201; America ASTM C1048; UK BS 6206: 1995



SPECIFICATION:

Glass Types: Float Glass, Pattern Glass

Colors: Clear, Green, Grey and Bronze etc.

Thickness: 3mm-19mm.

Size: max. 2440x3600mm, could be produced as per request.

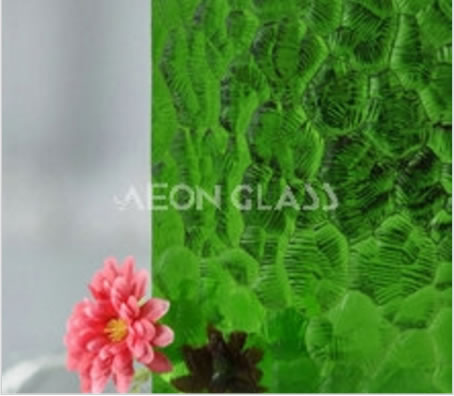

The shiny geometric patterns are printed onto the glass and appear color on a translucent matte base.



FEATURES:

1. Rich and colorful pattern designs provide unique decorative results: or obscure and quiet, or sparkling and lively, or serious and elegant, or bold and generous…

2. Tangible stereoscopic patterns will never fade.

3. Each distinctive pattern offers a different level of obscuration, providing privacy without sacrificing natural light.

4. Can help to give an impression of space and provides a personalized and timeless effect to all environments.

5. Can be cut, ground, drilled, tempered, laminated and printed, etc.



SPECIFICATION:

Colors: Clear, Bronze, Grey, Blue, Green and Amber etc.

Thickness: 3mm, 4mm, 5mm and 6mm

Sizes: 1220x1830mm, 1500x2000mm, 1524x2134mm, 1830x2440mm etc

Patterns: Karatachi, Nashiji, Mistlite, Map, Woven, Flora, Chinchilla, Rain etc.

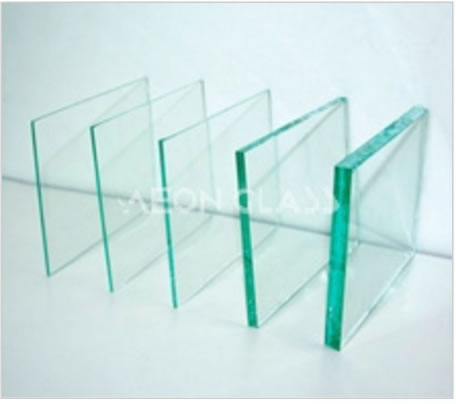

The molten glass flow into tin bath where the float glass is spread, polished and formed on the molten tin. The float glass has smooth surface, excellent optical performance, stable chemical capability, and high mechanism intensity. It is also resistant to acid, alkali and corrosion.



FEATURES:

1.  High light transmittance, excellent optical performance.

2.  Smooth and flat surface, visible flaw is controlled strictly

3.  Easily to be cut, insulated, acid-etched, lacquered, tempered and coated.

4.  Thickness available from 0.55mm to 25mm



STANDARD:

China GB11614-2009, Europe EN 572, and Russia GOST 111-2001.



SPECIFICATION:

Thickness: Normal 2mm-19mm

Utlra thin: 0.55mm, 0.6mm, 0.8mm, 1.0mm, 1.1mm, 1.3mm, 1.5mm, 1.8mm and 2mm etc

Ultra thick: 19mm, 22mm, 25mm

Sizes: 1524x2134mm, 1220x1830mm, 1600x2400mm, 1830x2440mm, 1800x2600mm, 2134x3050mm, 2134x3300mm, 2134x3660mm, 2250x3300mm etc. can be produced according to client’s request.

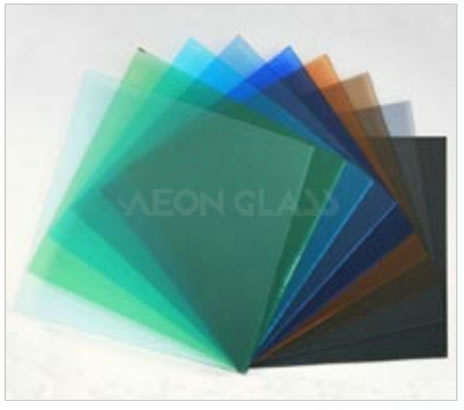

This coloration is achieved through adding metal oxides at the smelting stage. Addition of color does not affect the basic properties of the glass, even though visible light reflectance will be slightly higher than clear glass. The color density increases with thickness, whereas the visible transmittance decreases correspondingly as thickness increases.



FEATURES:

1. The body tinted float glass can reduce transmission of the sun s harmful rays by up to 80% thus minimizing fading to interior furnishings.

2. Tinted float glass can be bent, tempered or heat strengthened and in addition can be silk-screened or enameled.

3. The comprehensive range of soft natural colors compliments and harmonizes with modern building materials to provide an exciting and different look to new or existing buildings.

4. Could be easily cut, insulated, laminated, lacquered, tempered or coated etc.



STANDARDS: China GB/T 18701-2002, Europe EN 572 part 2 1995



SPECIFICATION:

Colors: Euro Bronze, Golden Bronze, Euro Grey, Dark Grey, French Green, Dark Green, Ford Blue, Dark Blue, Ocean Blue, Pink, Yellow etc.

Thickness: 3mm-12mm

Sizes: 1524x2134mm, 1650x2140 mm, 2140x3210mm, 2134x3300mm, 2250x3210, 2250x3300mm etc

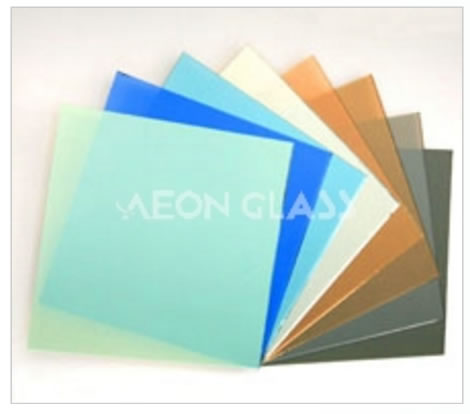

It is produced by using CVD technology (chemical vapor deposition) that creates a perfect uniform layer of metal oxide chemically bonded to the surface of the glass. The coating imparts a “mirror-like” façade to the Reflective Glass, giving it visual appeal while providing functional benefits like solar control and glare reduction. As this hard chemical layer is fully bonded to the glass, the glass can be cut, bent, tempered, heat strengthened and laminated without affecting the coating.



FEATURES:

1. Solar Control: This glass reflects a large proportion of the solar radiation, thereby restricting the heat gain inside the building.

2. Superior Visual Comfort: Reflects away the right quantum of daylight so as to limit glare, while allowing adequate amount of natural light.

3. Superior durability: High wear and superior scratch resistance.

4. Ease in processing: It can be processed like a normal float glass



SPECIFICATION:

Colors: Euro Bronze, Dark Bronze, Euro Grey, Dark Grey, French Green, Dark Green, Ford Blue, Dark Blue, Pink, Silver etc.

Thickness: 3mm, 4mm, 5mm, 6mm and 8mm

Sizes: 1524x2134mm, 1650x2140mm, 2140x3210mm, 2134x3300mm, 2140x3660mm, 2250x3210mm, 2250x3300mm etc

AEON Insualted Glass is made of two or more pieces of glass glazing sheets which might be low e or reflective glass or normal float colored glass and use sealant gumming and aluminum spacers which was filled with desiccant together. Insulated glass/ Hollow glass/IGU/Double glazing glass with the perimeter of the spacer that gets in contact with the glass is properly sealed with primary and secondary sealants to ensure it with air/argon tight.

SPECIFICATION:

Max. Sizes: 3300*15000mm

Air or argon spacer gap: 6mm, 9mm, 12mm, 15mm, 16mm etc

Glass thickness: 5+9A+5mm; 6+12A+6mm; 6+16A+6mm; 8+12A+8mm; 8+16A+8mm; etc

Glass can be Tempered, Heat Strengthened, Heat Soak Test

Glass Option: Annealed Float glass, Low-E Glass, Tinted Glass, Reflective Glass, Laminated Glass, Tempered Glass, Silkscreened Glass etc

Glass Color: Clear, Ultra Clear( low iron), light blue, Ford blue, dark blue, ocean blue, light gray, blue gray, light green, gold, bronze etc.

AEON LOW-E Glass is available in two types:

ONLINE HARD COATING LOW-E GLASS

TEMPERABLE OFFLINE SOFT COATING LOW-E GLASS

Online LOW-E coated glass is produced by pyrolyzing coating material continuously under high temperature through CVD and MOCVD coating technology so as to deposit them on glass substrate surface moving inside a tin bath and black-out furnace.

Temperable Off-line LOW-E Coated Glass is a highly efficient energy saving product obtained through the use of the Magnetron Sputter Vacuum Deposition (MSVD) method where multiple layers of metal or nonmetal coats are applied on the surface of a top quality float glass substrate.

FEATURES:

· High efficiency in energy saving and environment production.

· Wonderful performance in visible light transmission.

·  Stable chemical performance.

· Stable performance in thermal processing.

· Stable mechanical performance for solid coat, high abrasion and scratch resistance.

· When processed into Insulated Glass, it is not necessary to clean up edge coat.

SPECIFICATION:
