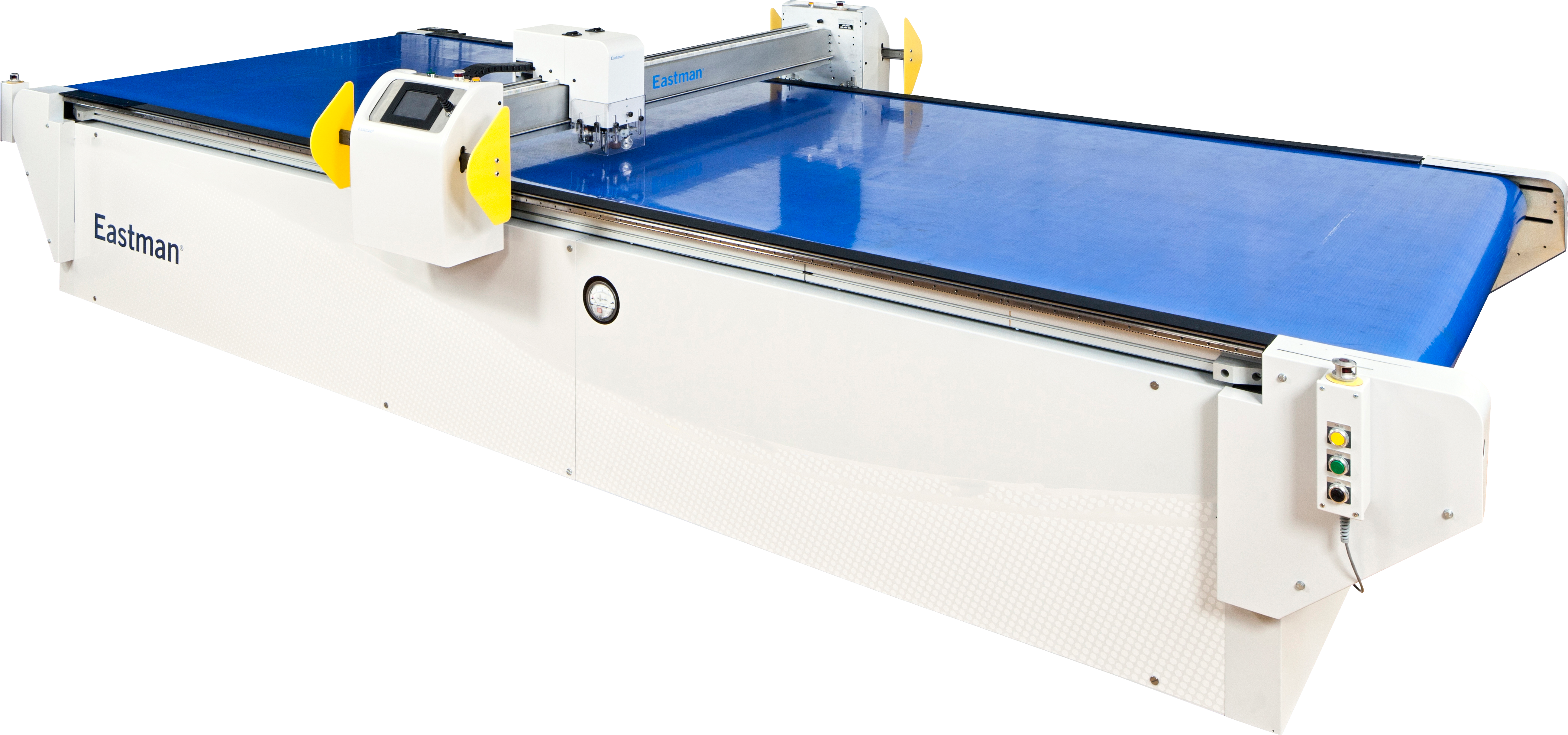

The Eastman Eagle C135 conveyor system, an automated interlayer cutter, boasts supreme capabilities for single- to low-ply cutting requirements. It has the ability to continuously convey rolled material goods with consistent speed and control. Eastman's gantry and tool head design are engineered to cut a variety of interlayer materials while exceeding industry standards for accuracy. The robust conveyor design delivers unrivaled levels of material utilization and is often capable of cutting multiple layers without plastic overlay. This computer-controlled cutting system requires minimal operator guidance to automatically feed and spread the material to the identified start position.

• Exclusive InMotion™ software enables the conveyor to continuously move while the gantry is cutting (option)
• Tremendous efficiency for pattern pieces exceeding the table length
• Choice of 60 blades, punches, and notches

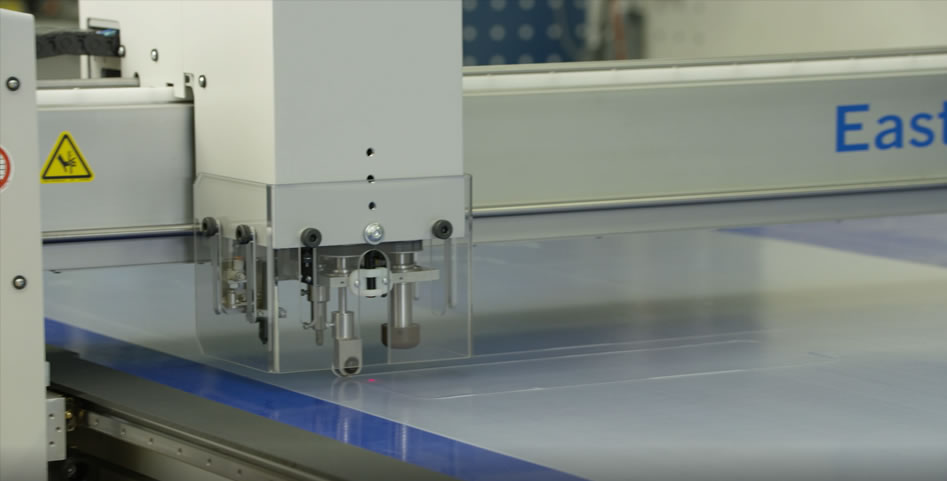

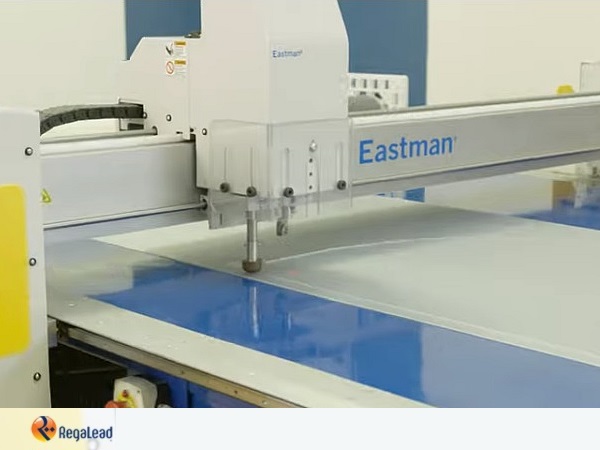

Cutting EVA laminated glass with Eastman C135 Conveyor system

Cutting 0.030 inch thick (0.76mm) EVA laminated glass with automated Eastman C135 conveyor system.

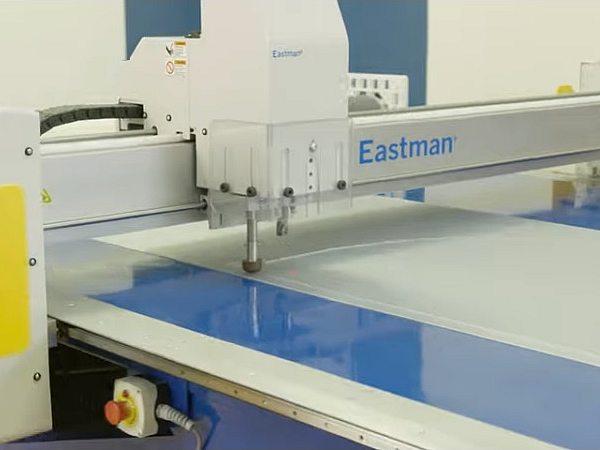

Cutting EVA laminated glass with Eastman C135 Conveyor System

Cutting 0.015 inch thick (.38mm) EVA laminated glass with automated Eastman C135 convertor system.

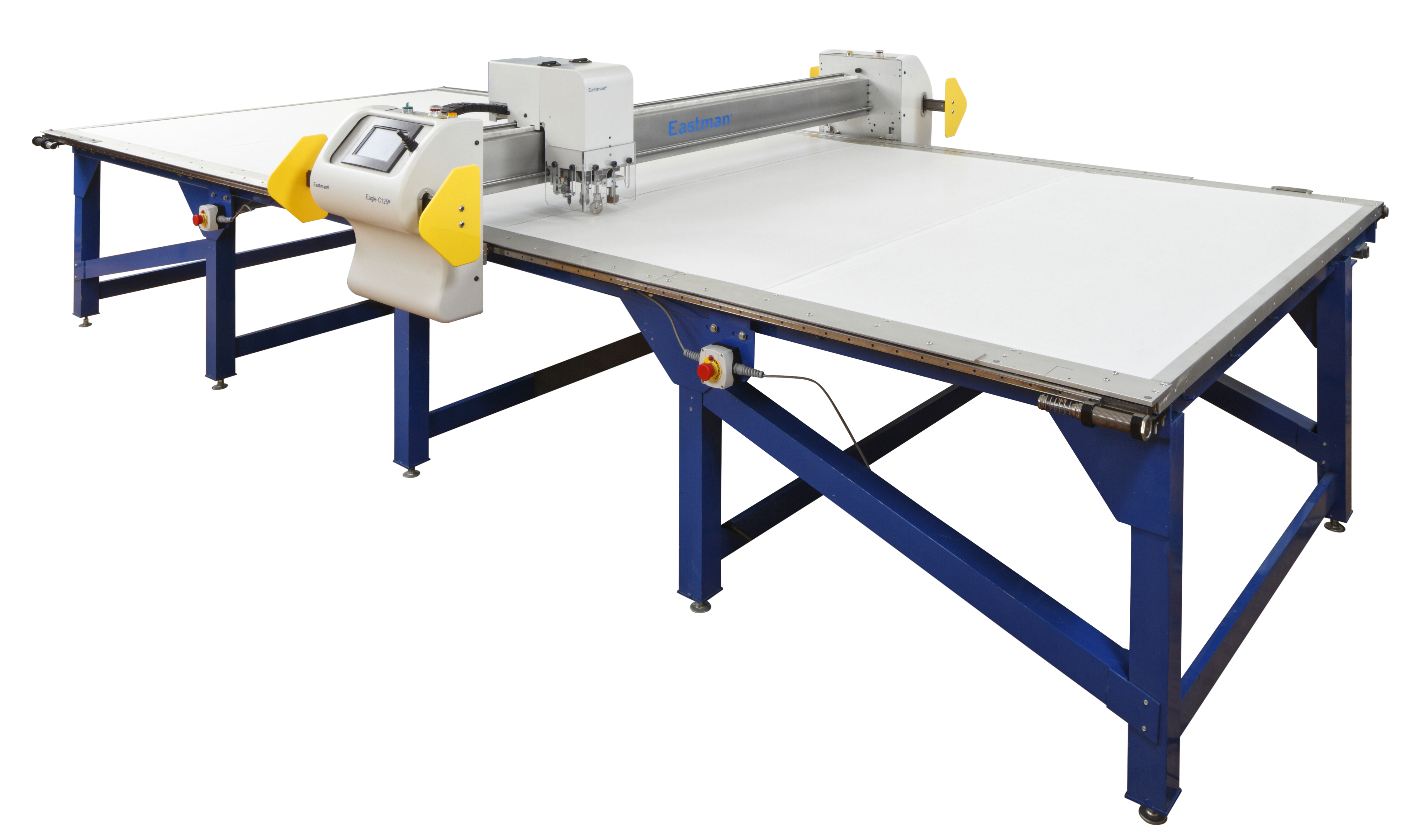

Eastman’s static table system is capable of cutting, marking, and punching virtually any flexible material at speeds of up to 60 inches per second (152.4 cm/sec.). The static table system is available in a range of system lengths and widths to meet the demands for prototypes, one-offs and full-production runs. The system’s high-precision configuration features multi-axis motion for more defined and accurate cuts. Material is spread across the static table by an operator or with the use of a pneumatic gripper bar. The open plenum vacuum system design ensures evenly dispersed airflow for optimal material hold-down. This computer-controlled system features zoning capabilities to enable cutting in one area while the operator is simultaneously picking parts in another, maximizing daily production capacity.

• Choice of standard, heavy-duty, or fiber tool head, featuring individually aligned and calibrated tool spindles with your choice of over 60 blades, punches, and notches.
• A library feature within the operating control software allows the operator to save commonly used tool pressures and blade assignments based on job and material files.
• Prevent unauthorized changes to the system and software with restricted login access.

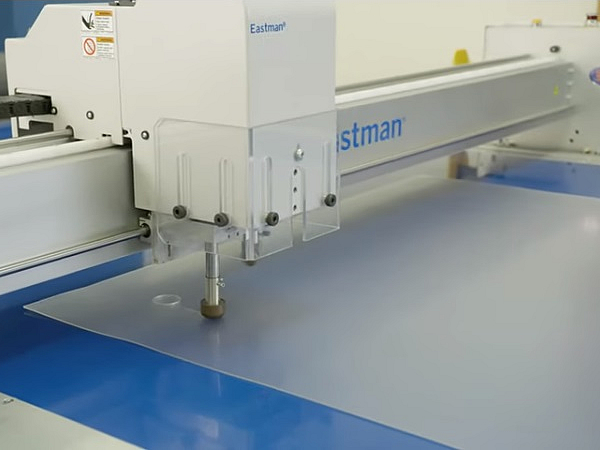

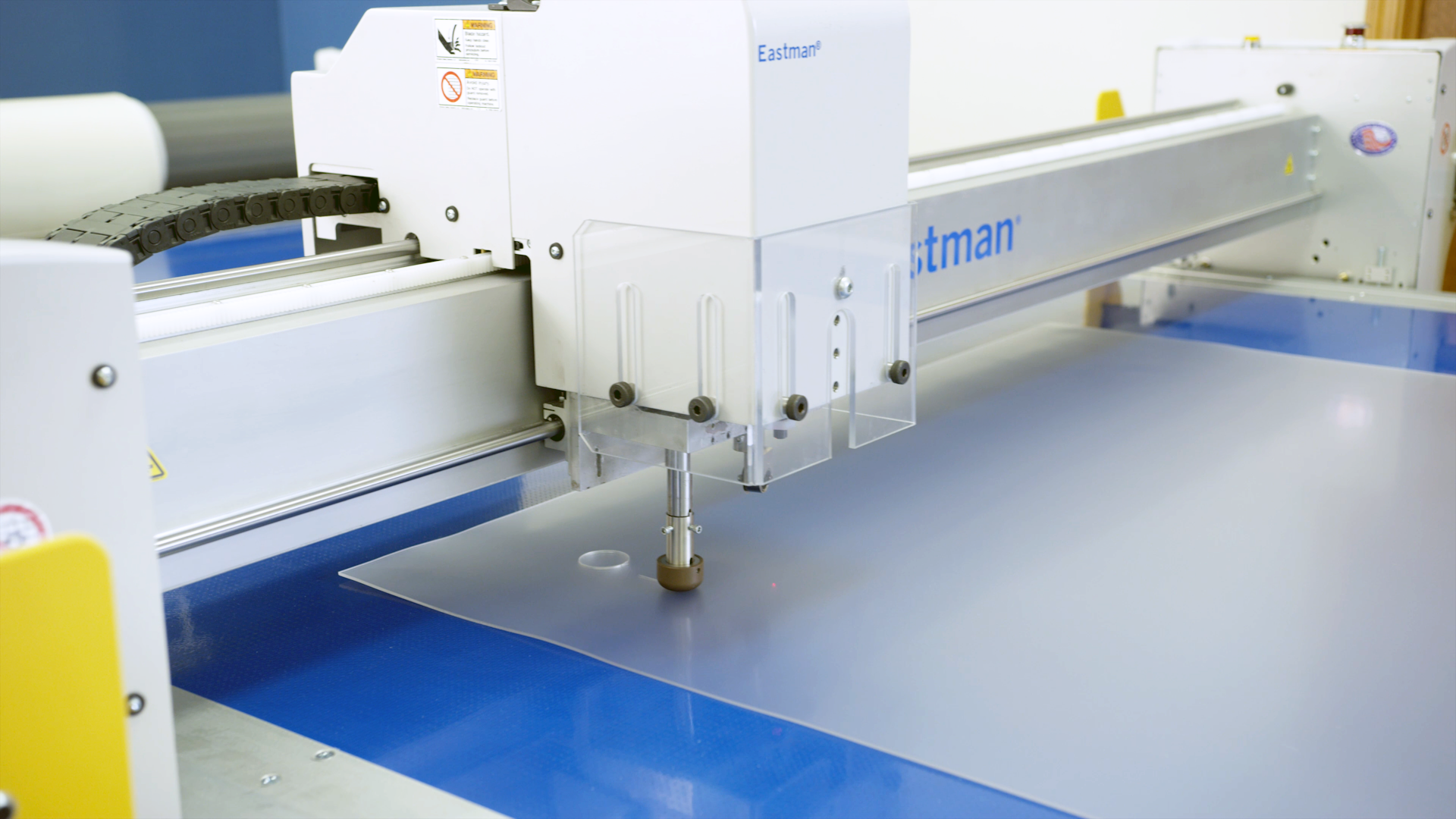

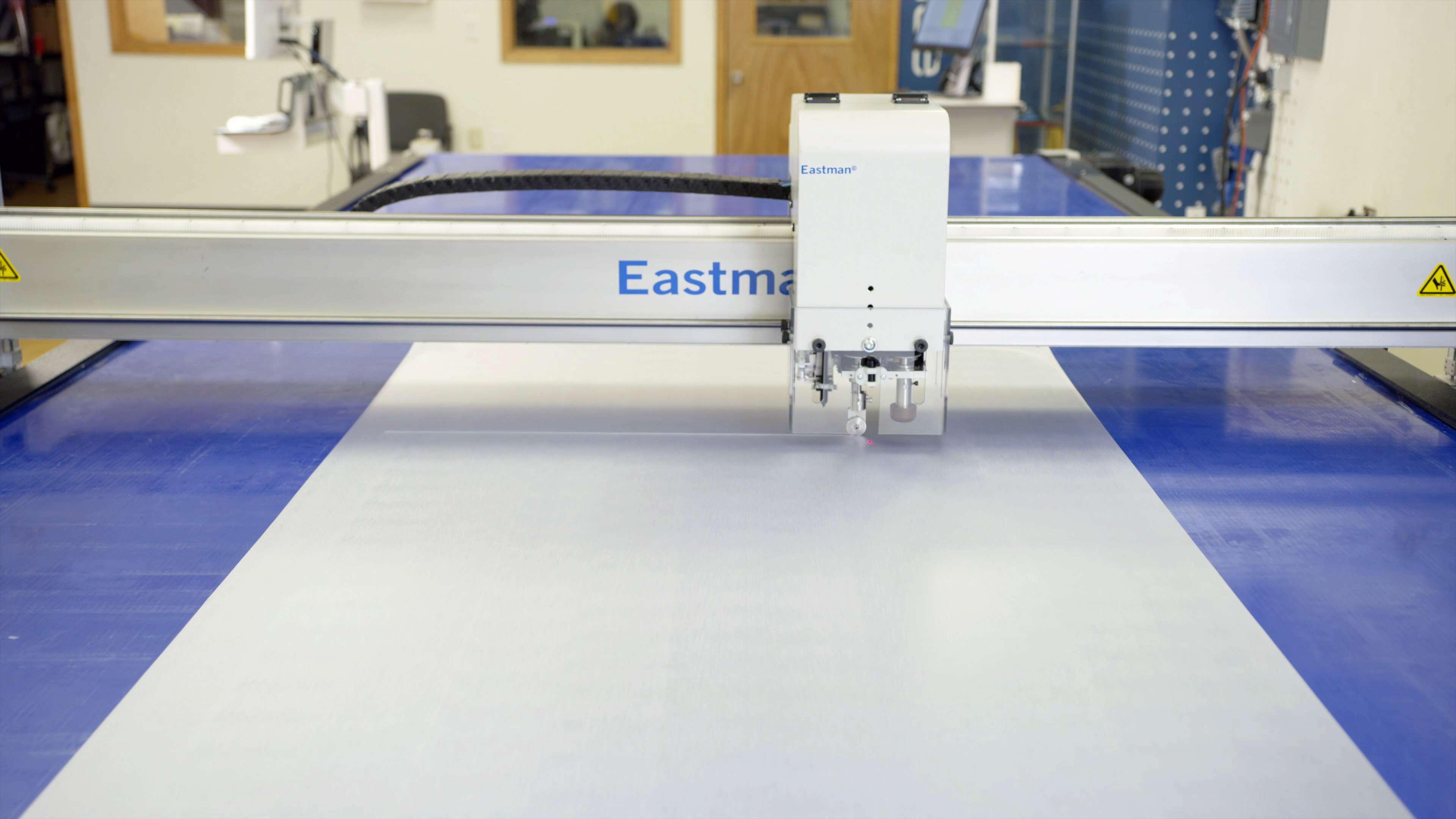

Cutting SG laminated glass with Eastman S135 static table

Cutting laminated glass, SentryGlas Clear 2.28mm thick (90mil), with automated Eastman S135 static cutting table.

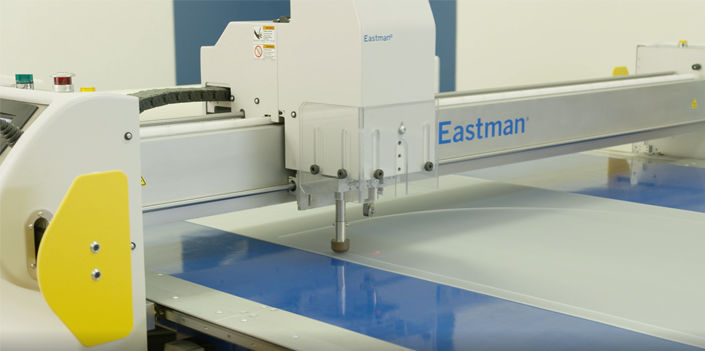

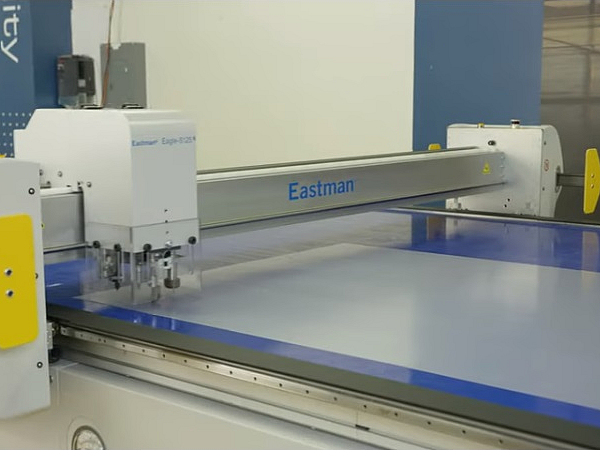

Cutting PVB laminated glass with Eastman S135

Cutting laminated glass, Trosifol Clear 2.28mm thick (90mil), with an automated Eastman S135 static cutting table.

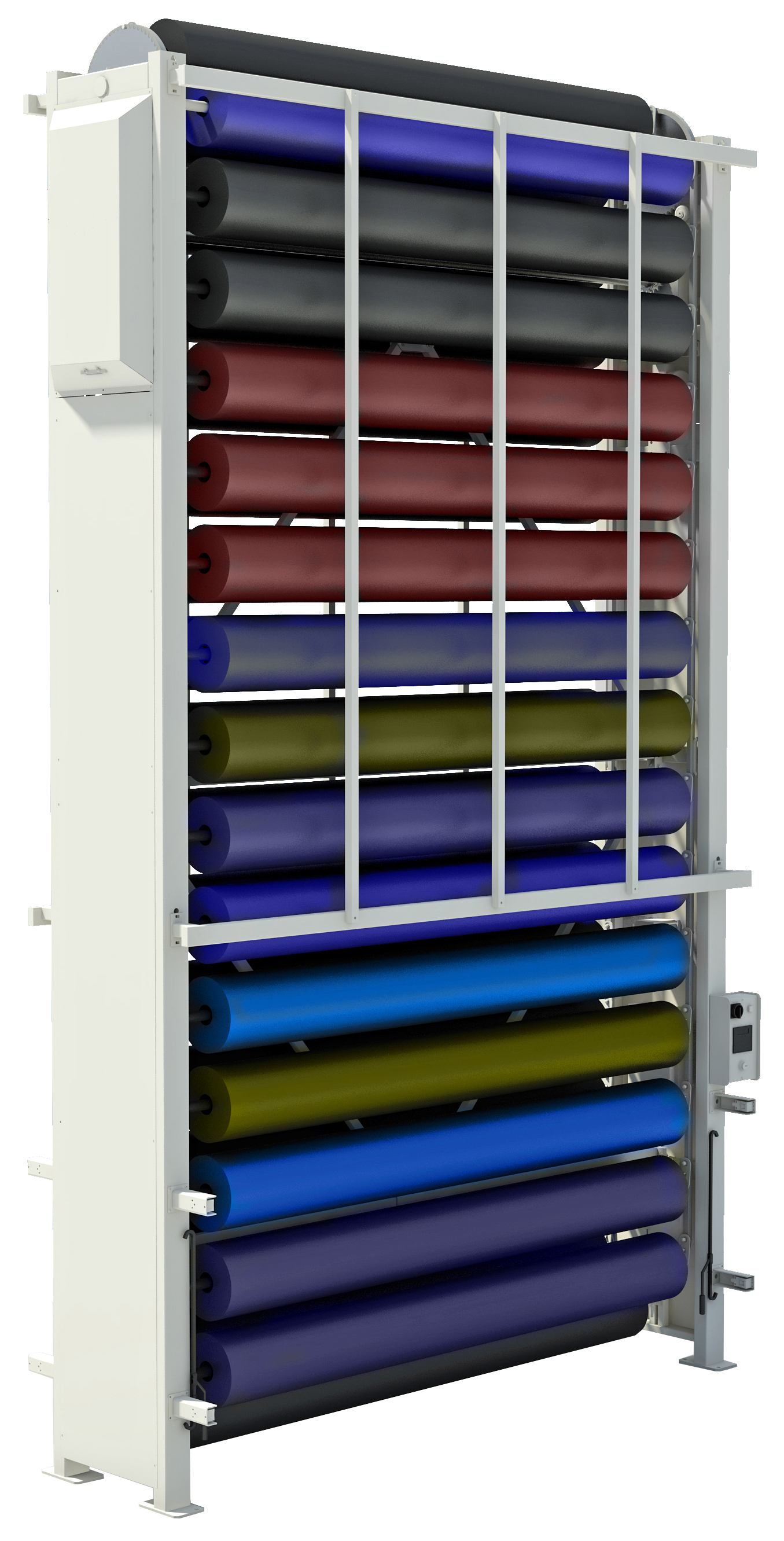

The Multi-Roll Carousel system, available in many sizes and styles, provides tremendously simple access to multiple material rolls for end-of-table spreading, using minimal floor space. With the press of a button, material rolls turn around the carousel, stopping on the desired roll. The motorized textile carousel increases useable storage capacity by applying the product to operator principle in underutilized overhead space. Mechanical storage eliminates wasteful and potentially harmful steps for stocking and retrieving rolled materials. The Multi-Carousel accomplishes this by automating retrieval and presenting rolls at an ergonomically optimum height which reduces unnecessary bending, walking, lifting, and pushing which will reduce work-related injuries.

• Easy mobility with motorized control
• Simplified roll loading right off the floor or cart
• Shielded motors prevent materials from being soiled
• Dual controls for loading and operating ease
• Forward/Reverse push buttons with security keypad and e-stop
• Single tower, multiple tower or overhead configurations available
• Casters and track configuration
• Material can feed from either side

The Power Feed System continuously supplies material for the length of marker or until the roll is consumed. It automatically adjusts and maintains consistent tension for any material type. An optional photo-electric edge control unit ensures precise alignment of each ply. Available in one-roll, two-roll, three-roll, six-roll with cart, or flat fold configurations.

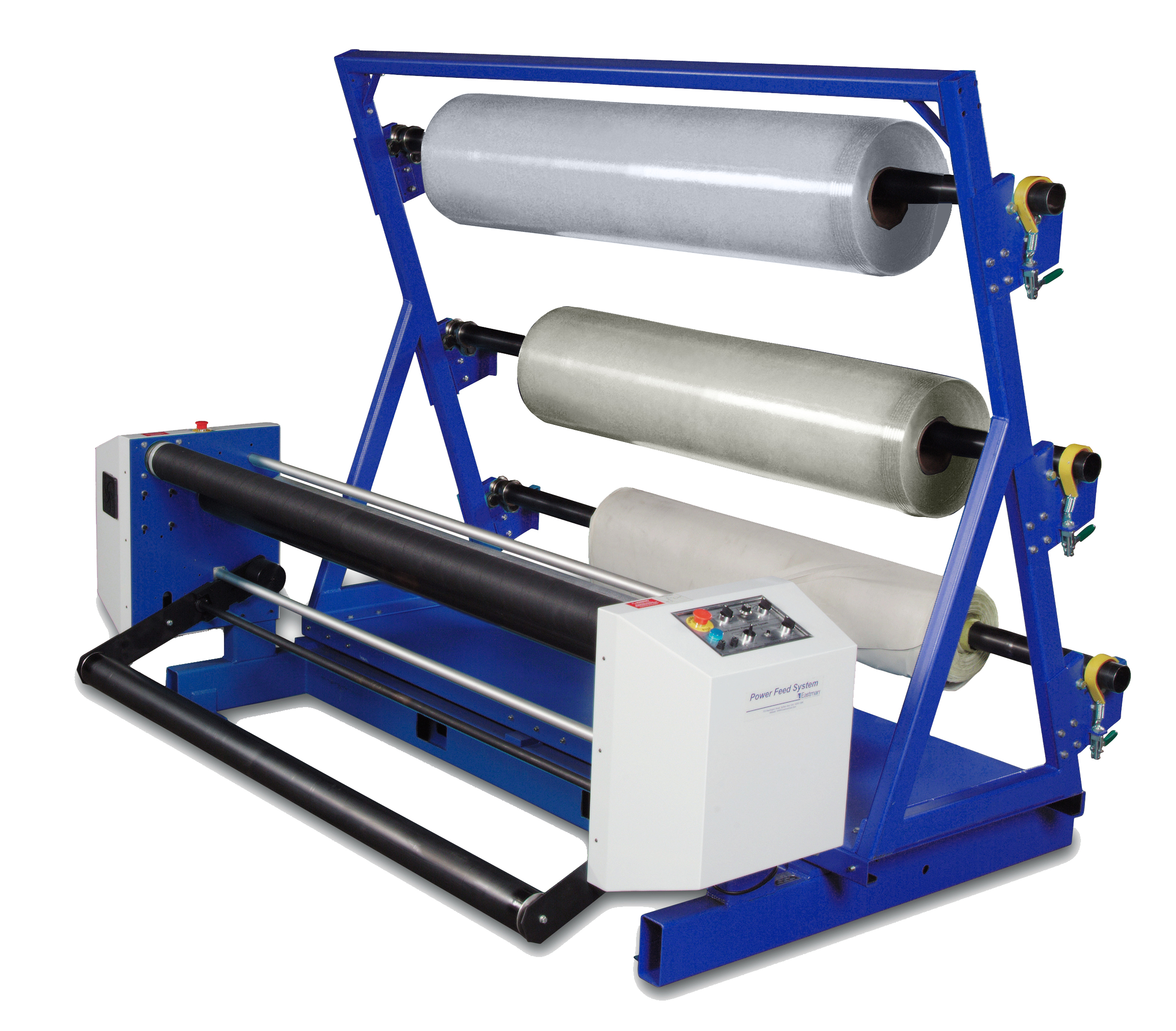

Pictured: Three-roll Power Feed

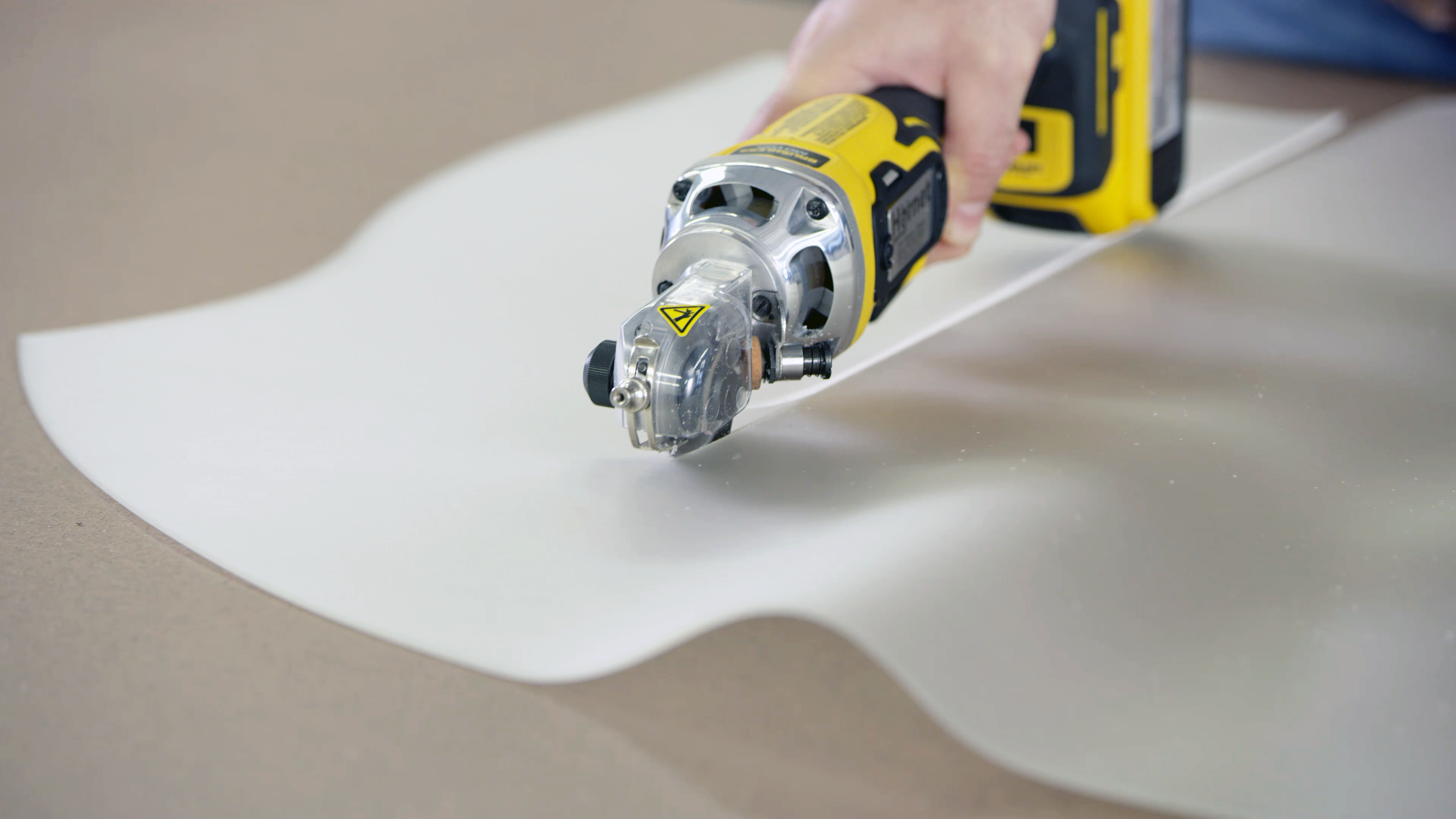

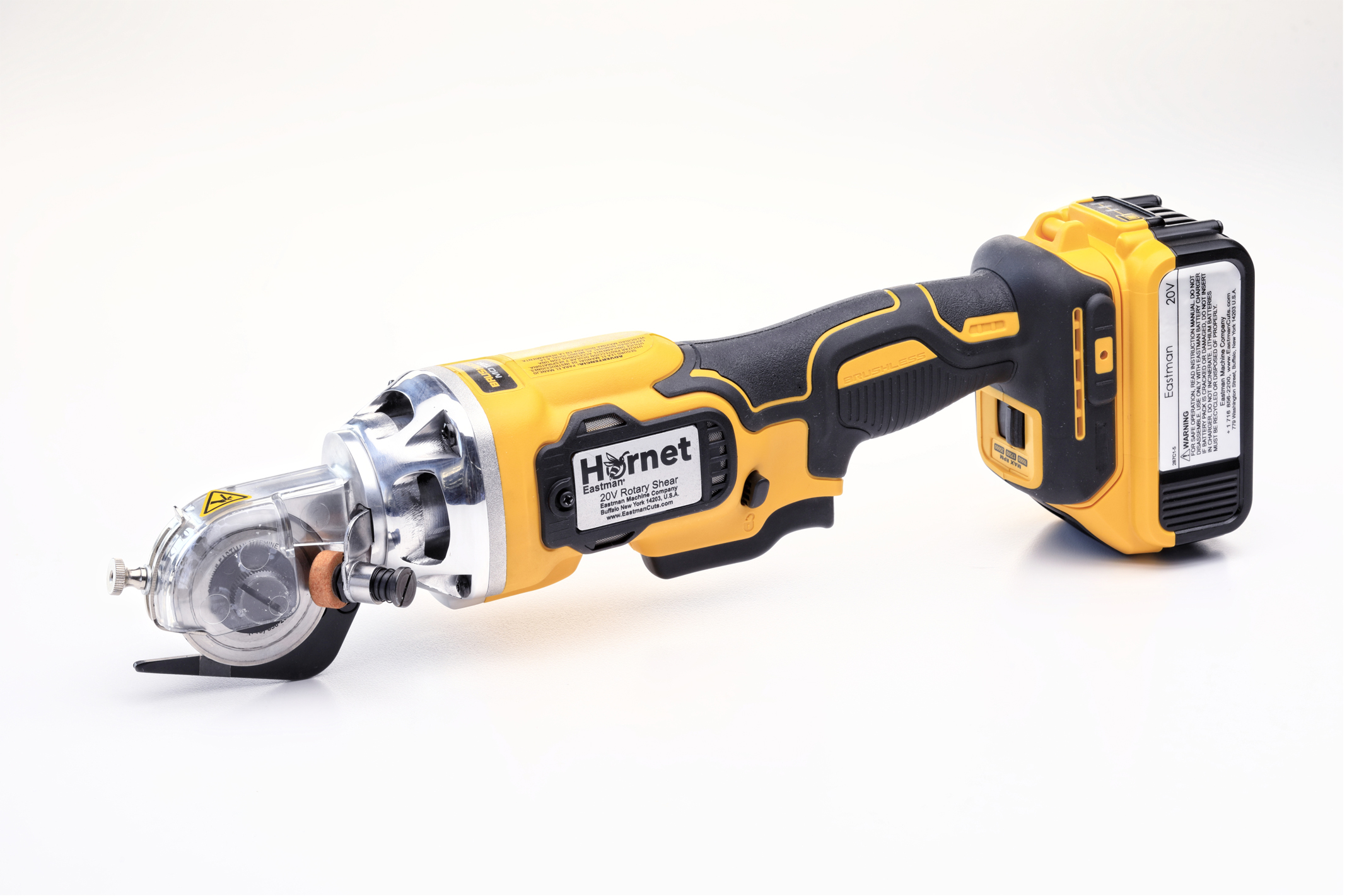

The Hornet is a powerful, rechargeable, professional-grade cordless power tool. Multiple speeds on the high torque motor give you complete control when cutting through various interlayer material. All in a package that weighs only 4 lbs (1.8 kg)! Balance and maneuverability allow the Hornet to buzz through your workload, without binding or tearing. No matter the industry, if cutting material by hand is part of your operation, the Hornet will become a staple in your toolbox.

• Powerful, professional-grade, cordless power tool weighing 4 lbs. (1.8 kg)
• Convenience and portability; battery powered
• Provided with two 20V (4ah) lithium-ion batteries – one for operation, one for charging
  • Battery recharge time: 1 hour/battery
• The high torque motor can cut anything from prepreg carbon to silk with ease
• Pelican head guides lofted goods through the blade
