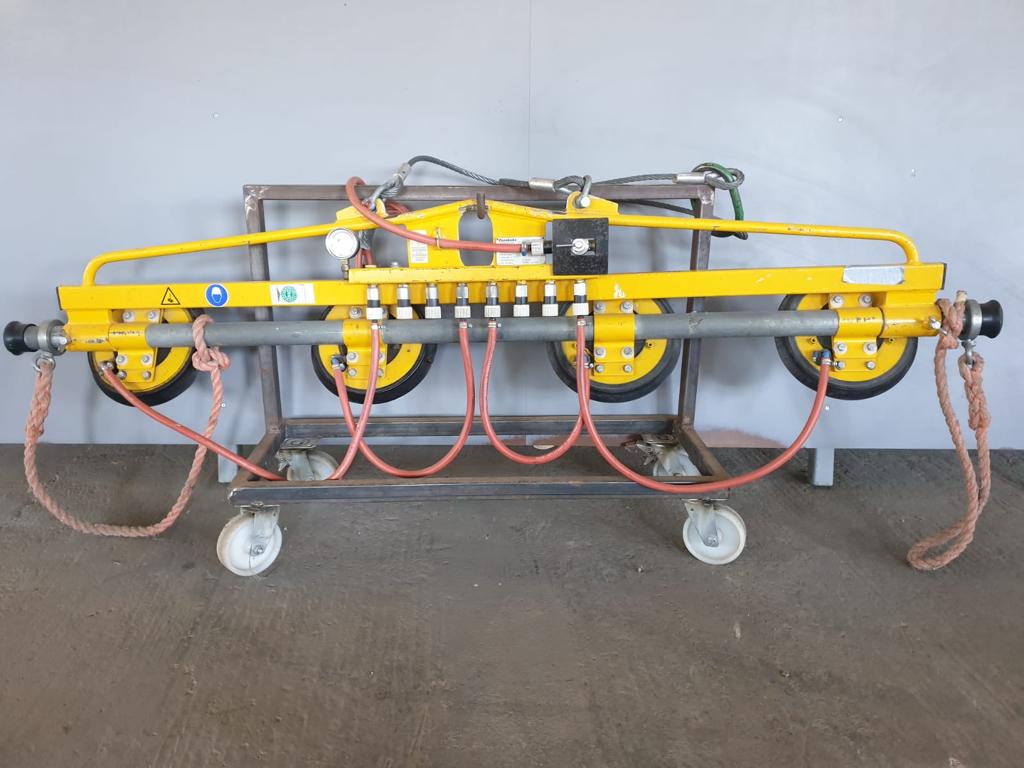

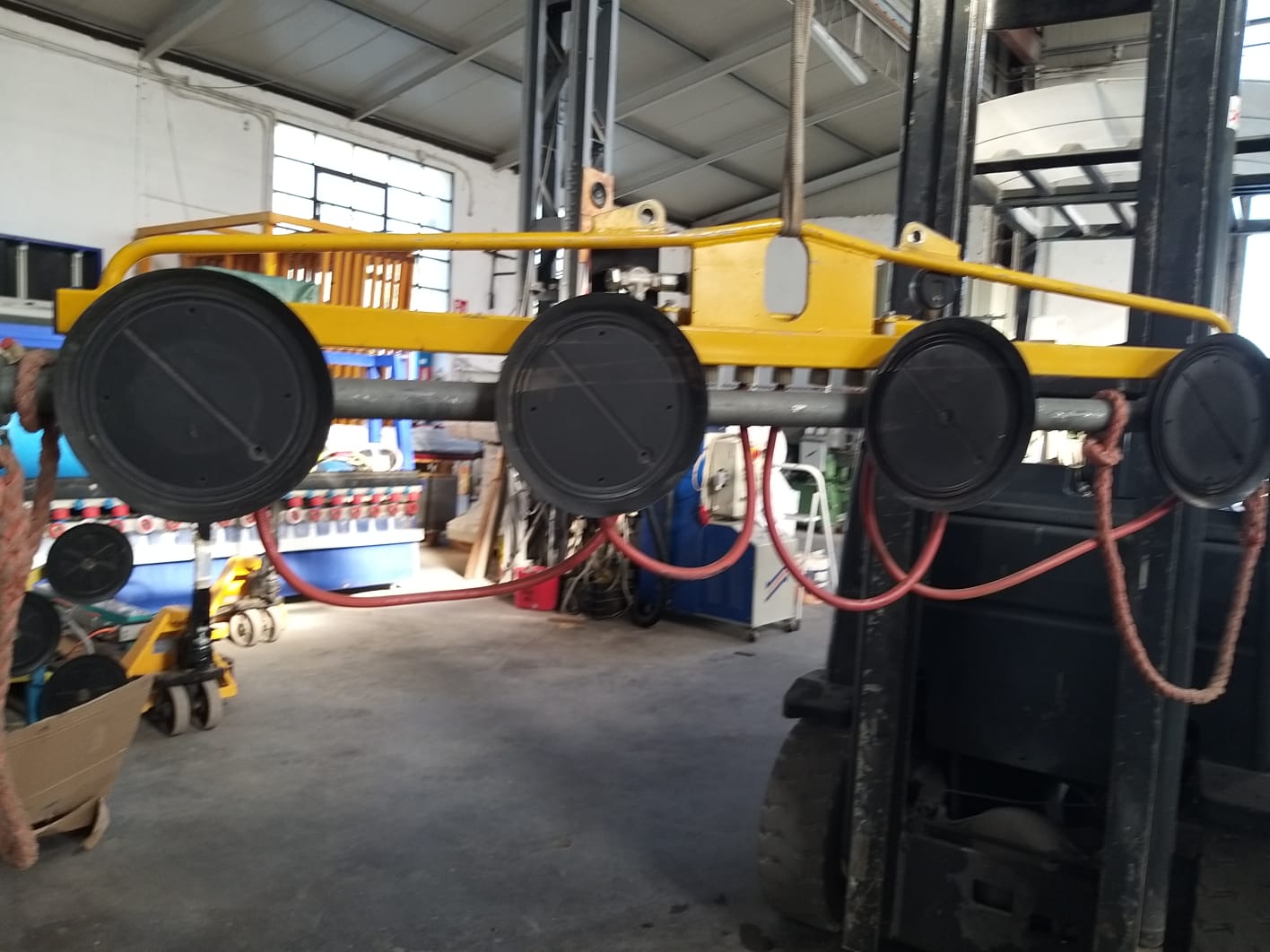

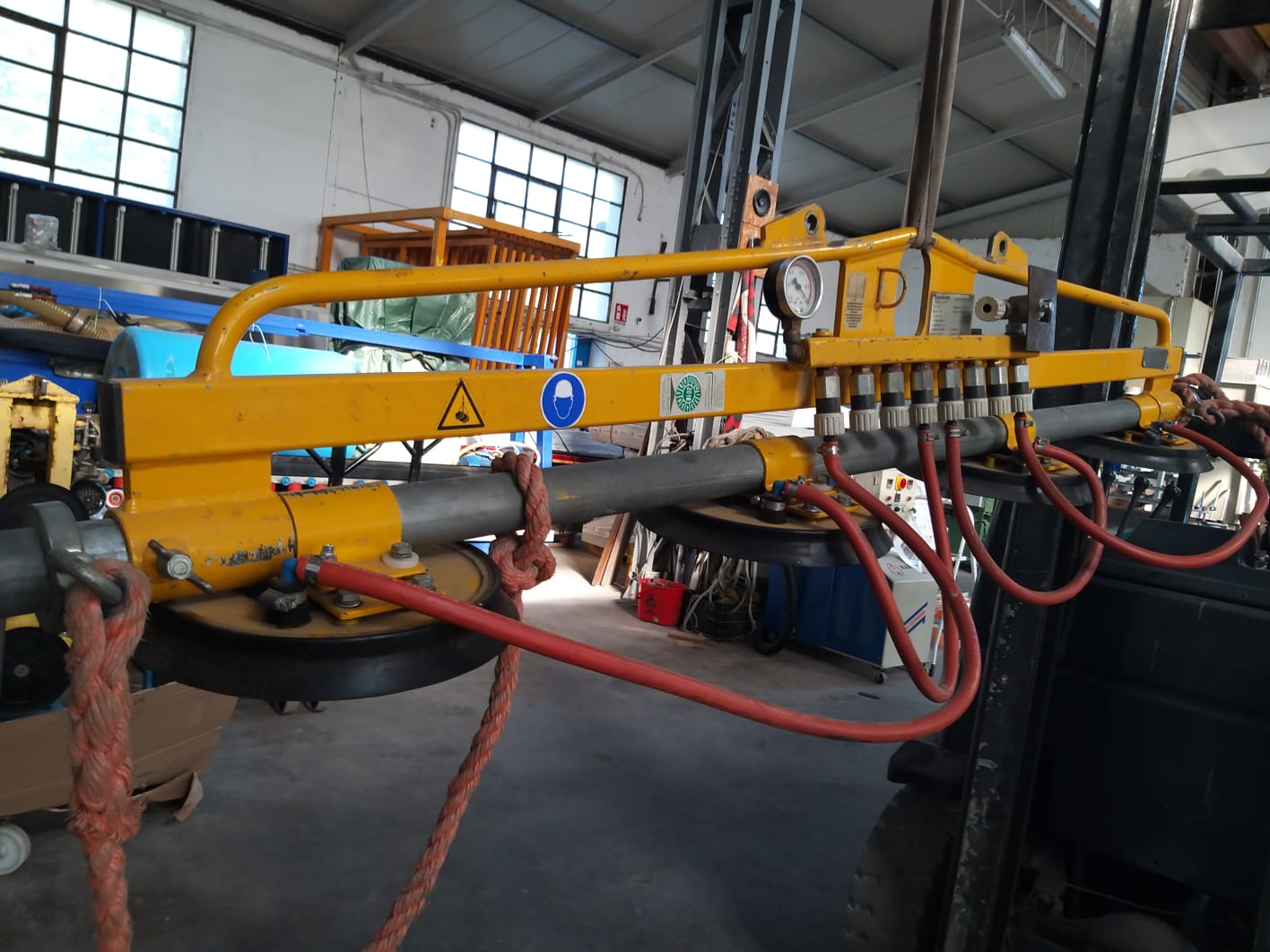

PANNKOKE Frame 7000-A-1000
| Handling and transportation
PANNKOKE
Frame
7000-A-1000
suitable for lifting
material properties
gas-tight
surface smooth
e. g. glass panes, insulation glass units, plastic and ceramic plates,
coated boards
suction cup type 388
diameter in action approx. mm 300
quality of suction cups black rubber
abrasion possible
up to 100° C heat resistant
length of carrying frame approx. mm 3000
longitudinal-carrying bar length
max. approx. mm 4000
number of suction cups 6
safe working load
on smooth and clean surface
at 60 % vacuum kg 600
vacuum infeed connection
quick release coupling 9 mm
