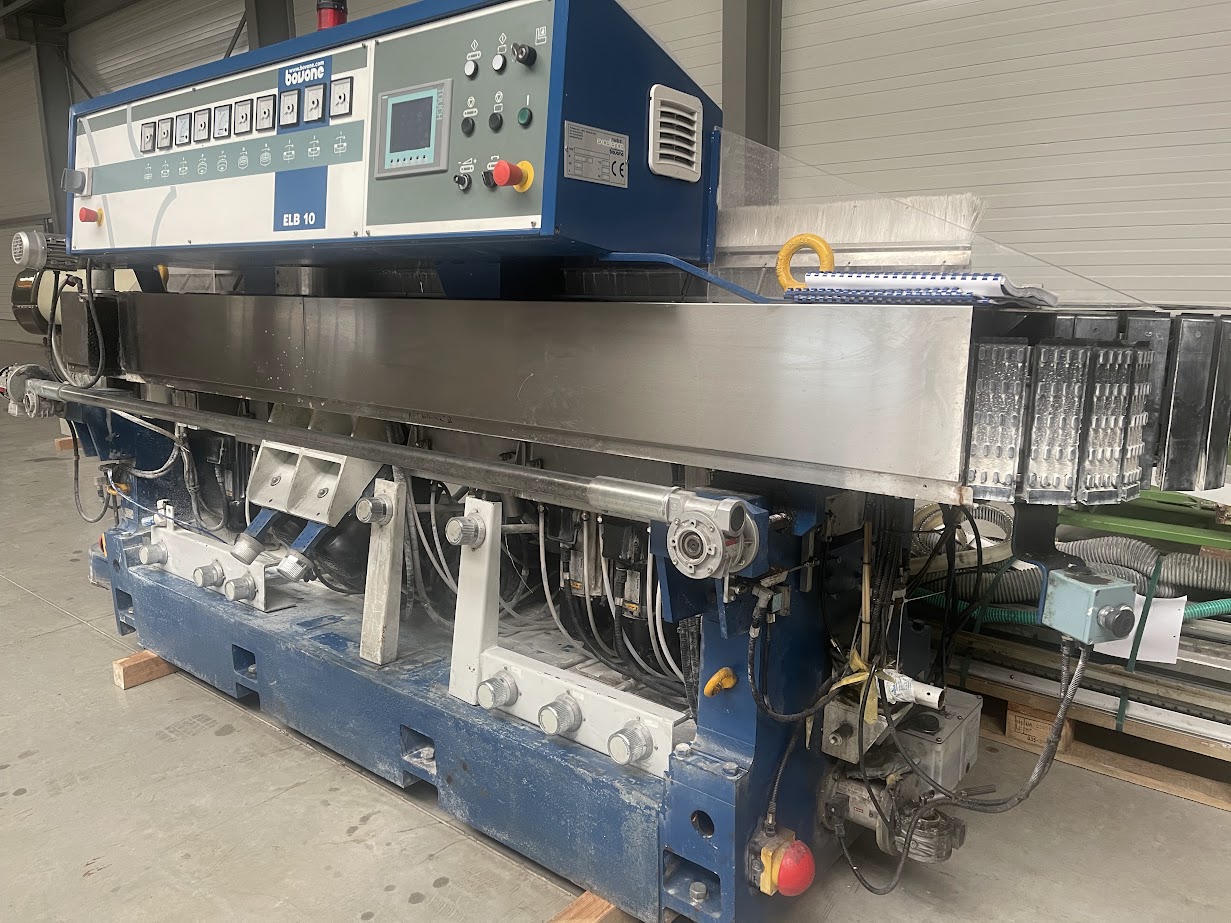

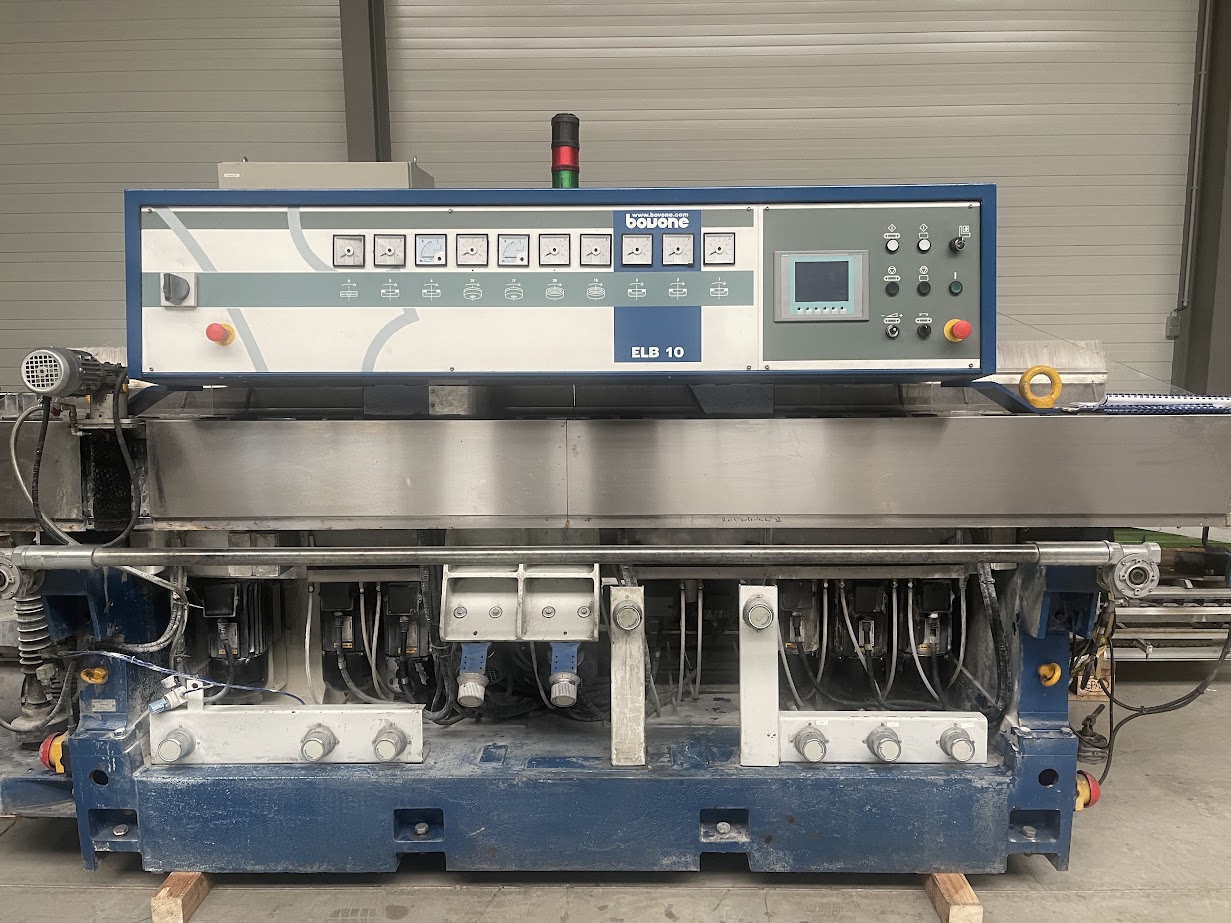

BOVONE ELB 10 year 2014
| Edging machines
10 cup wheels vertical glass edging machine

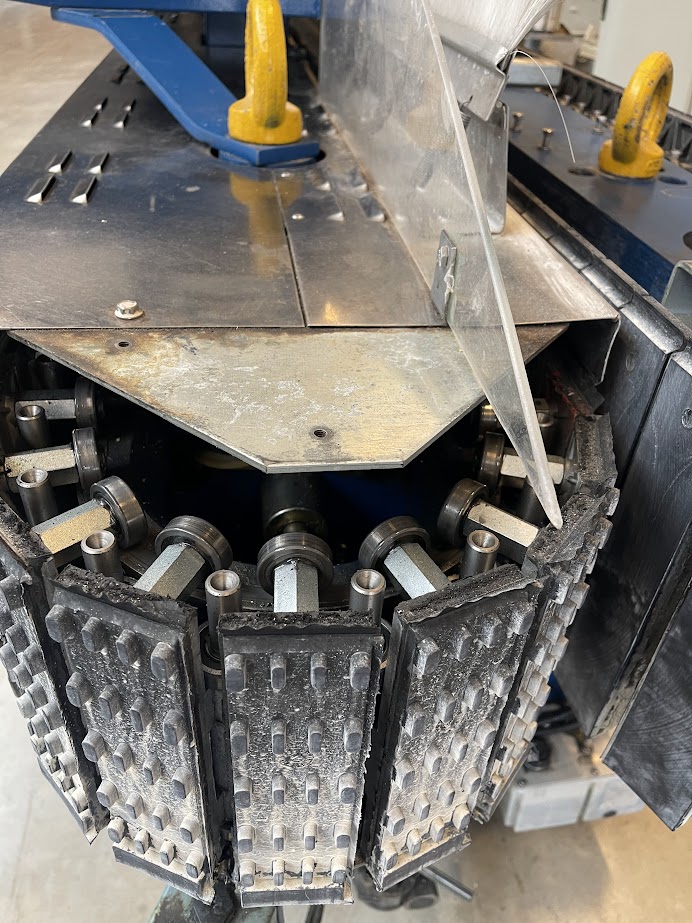

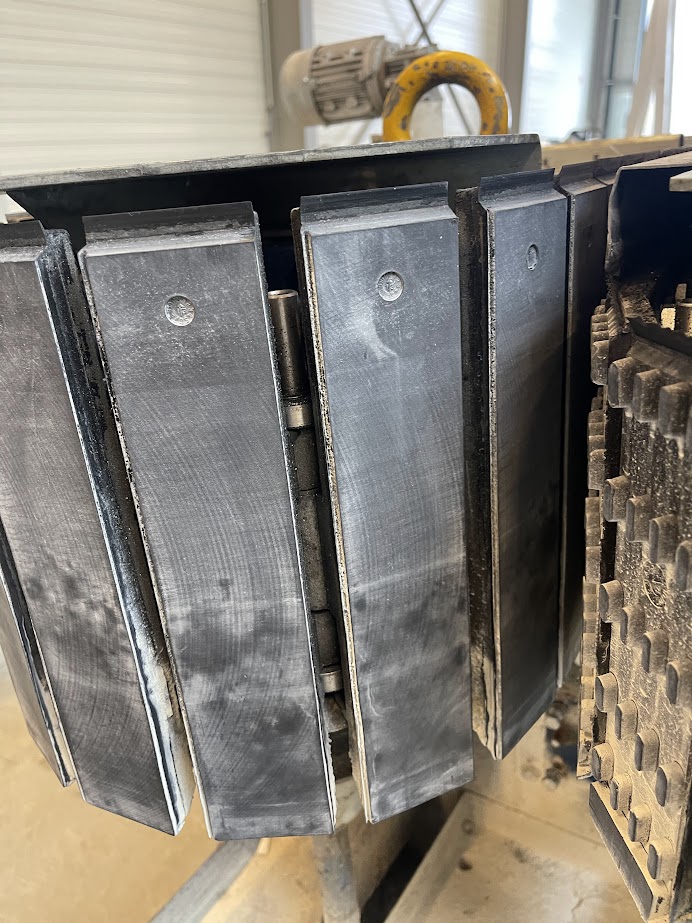

with complete new front and rear track and rubber pads from year 2023

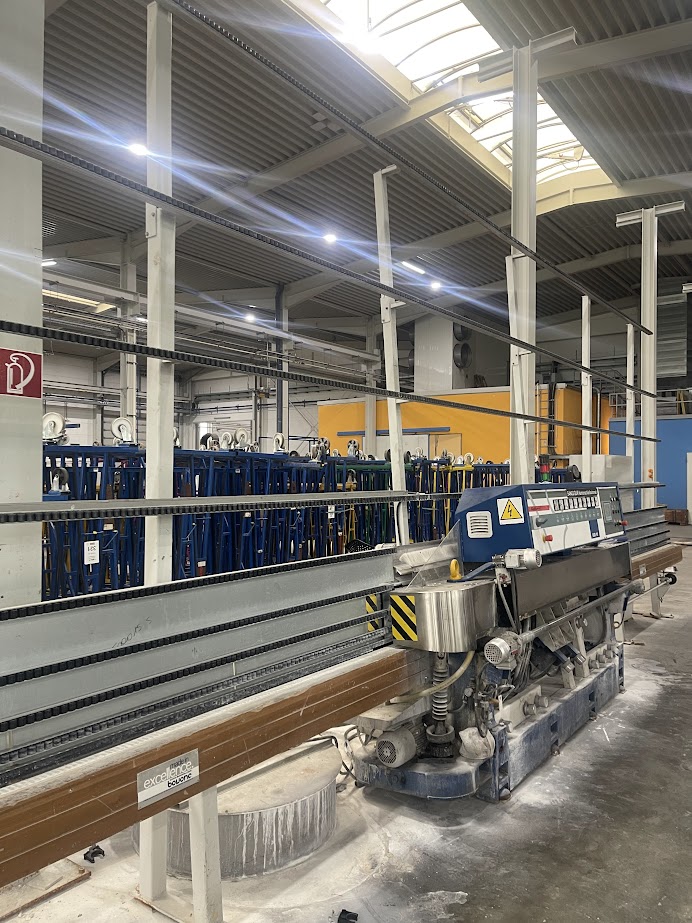

with extended in- and outlet conveyor of 4 m and higher rack of 3 m
3 diamond wheels for the flat edge
2 diamond wheels for the arrises
2 polisching wheels for the arrises
3 polisching wheels for the flat edge ( last pos. 10 has liquid cerium with felt wheel ,cerium tank+mixer and pump
glass thikness : 3 - 30 mm
speed : 0,35 - 4 m/min.
min. glass size : 40 x 40 mm
power : 30 kw
machine dimensions : L : 10,5 m , W : 1,2 m , H : 4 m
weight : 5000 Kg
